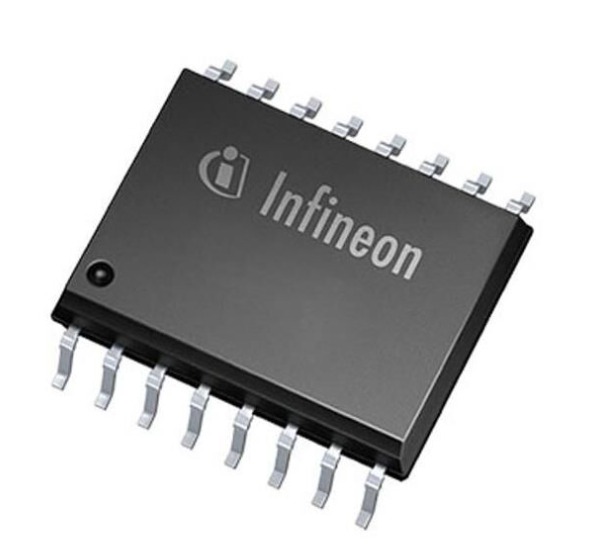

1ED3322MC12NXUMA1-INFINEON-Gate Driver SMD IC

1ED3322MC12NXUMA1-INFINEON-Gate Driver SMD IC

The EiceDRIVERTM F3 Enhanced (1ED332x) family is an isolated gate driver family including protection features, such as short-circuit protection (DESAT), soft-off and active Miller Clamp. The gate driver family provides typical peak output currents of up to 8.5 A. Its short-circuit protection is suitable for both IGBTs and Sic MOSFETs. The active Miller Clamp feature makes it ideal for fast switching applications with Sic MOSFETs and TRENCHSTOP™ IGBT 7 to avoid parasitic turn-on. The appealing protection feature-set increases system safety in many applications.

DNA solutions, Nashik has various types of Gate Driver IC's. Check out our complete collection of Gate Driver IC's.

• High Output Current Capability: Capable of sourcing up to 6 A and sinking up to 8.5 A peak output current, ensuring efficient switching of power devices

• Robust Isolation: Provides an isolation voltage of 5,700 Vrms, ensuring safety and reliability in high-voltage applications

• Desaturation Protection: Equipped with DESAT protection to safeguard power transistors against short-circuit conditions

• Active Miller Clamp: Prevents unintended turn-on of the power transistor by clamping the gate during off-state, enhancing system reliability

Specifications of 1ED3322MC12NXUMA1-INFINEON-Gate Driver SMD IC

• Supply Voltage Range: Input side (VCC1): 3.3 V to 5 V; Output side (VCC2): 15 V to 30 V

• Propagation Delay: Typical turn-on delay of 80 ns and turn-off delay of 86 ns, facilitating high-speed switching operations

• Operating Temperature Range: -40°C to 125°C, suitable for demanding environmental conditions

• Package: DSO-16 wide body with 8 mm creepage distance, ensuring adequate insulation and spacing for high-voltage applications

Applications of 1ED3322MC12NXUMA1-INFINEON-Gate Driver SMD IC

• Industrial Motor Drives

• Renewable Energy Systems

• Power Supplies

• Electric Vehicle Charging Stations

Package Includes

      1 x 1ED3322MC12NXUMA1-INFINEON-Gate Driver SMD IC
