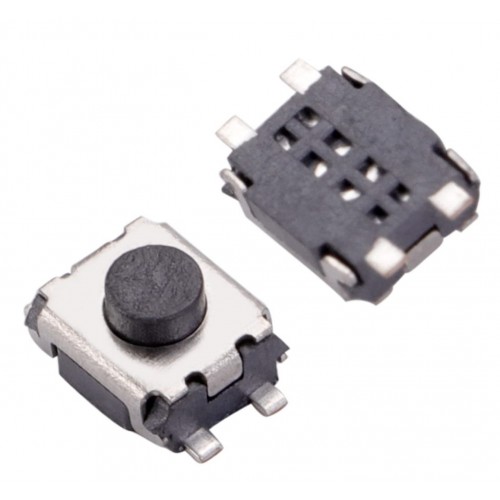

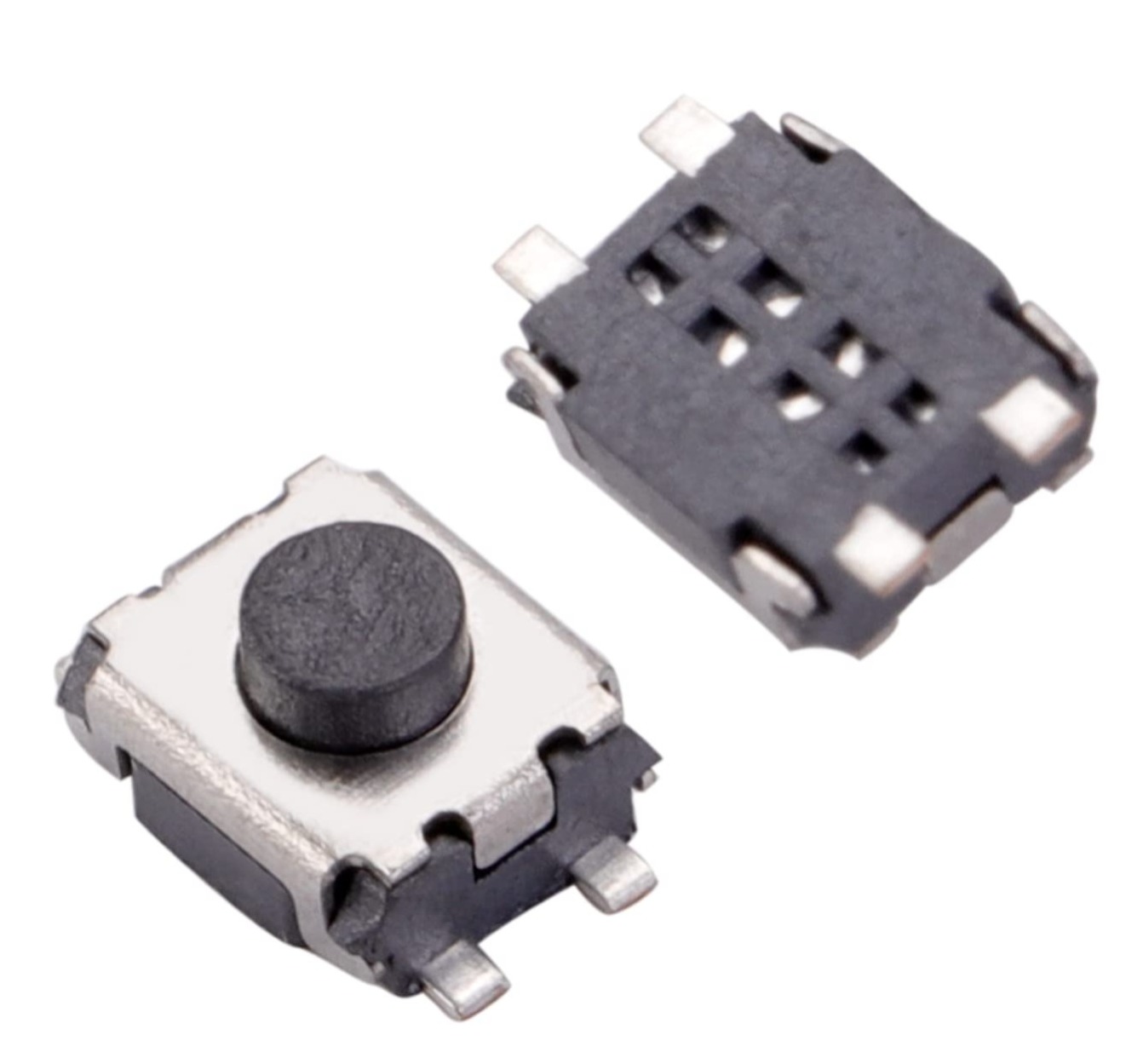

2 Pin 3x4x2mm Round Button SPST Straight Tactile SMD Switch

2 Pin 3x4x2mm Round Button SPST Straight Tactile SMD Switch

This 3x4x2mm SMD Tactile Switch is widely used as a standard input “buttons” on electronic projects. This switch uses surface mount technology. Hence, it can be used where space is limited. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit. It features a round button actuator with a tactile feedback mechanism, which provides a "click" sensation when pressed, ensuring precise and satisfying user input. With a Single-Pole Single-Throw (SPST) configuration, it acts as an on/off switch, closing the circuit when pressed and returning to the open state when released.

DNA solutions, Nashik has various types of Switches. Check out our complete collection of Switches.

• Surface mount design.


• High operating force (3.0N or 3.6N) suited to automotive equipment requirements


• The long life of 300,000 cycles realized despite the high operating force


• Middle stroke (1.05mm)


• Used in the fields of electronic products, household appliances and more


• This light touch switch is waterproof, prevent oil, anti-pollution, anti-static interference


• High precision mechanism design offers acute operation and long service life


Specifications of 2 Pin 3x4x2mm Round Button SPST Straight Tactile SMD Switch

• Switch Type: Tactile (momentary push-button).


• Button Shape: Round.


• Contact Configuration: SPST (Single-Pole Single-Throw).


• Dimensions: 3 mm × 4 mm × 2 mm.


• Number of Pins: 2 pins.


• Mounting Type: Surface-mount (SMD).


• Actuation Force: Typically around 160-260 gf (grams force), depending on model.


Package Includes

• 1 x 2 Pin 3x4x2mm Round Button SPST Straight Tactile SMD Switch
