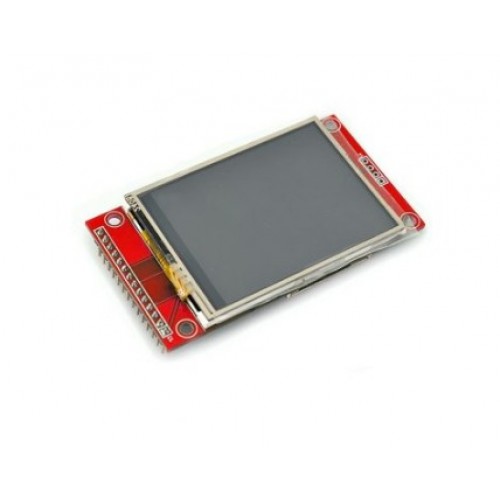

2.4-inch SPI Interface 240×320 TFT Display Module

2.4-inch SPI Interface 240×320 TFT Display Module

This 2.4-inch SPI Interface 240×320 TFT Display Module has always been one of the hot products in DIY industry and LCD is basically the necessary products during all projects, at the same time, serial port modules are also the popular ones because it takes few IO and the usage is simple. This section of the 2.4S-inch TFT LCD serial SPI integrated features of compact,

Pin Description:  SDO: Serial clock output, LED: 3.3V IO and Power Supply pin, SCL: Serial clock input, SDA / SDI: Serial data input, DC: Data / Command selection, RST: Reset, Low level active, CS: Chip Selection, Low level active, GND: Ground, VDD33: 3.3V Power Supply pin, UTFT Support.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

• It is a 2.4″ SPI TFT LCD  Module

• 10pins interface.

• Not just an LCD break but include SD card (2GB)

• The LCD drive ic is ILI9341

• It’s a 240 * 320 (resolution)

• Touch: No

• 2.4 inch TFT LCD screen

• The LCD has a wide viewing angle, the contrast is also very suitable

Specifications of 2.4-inch SPI Interface 240×320 TFT Display Module

• Model Type: TFT Display Module

• Display Size (Inch): 2.4

• Display Resolution: 240 × 320

• Operating Voltage (V): 3.3V to 5V

• Driver IC: ILI9341

• Backlight mode: hite

• Color Depth: 262K/65K

Package Includes

      1 x 2.4-inch SPI Interface 240×320 TFT Display Module
