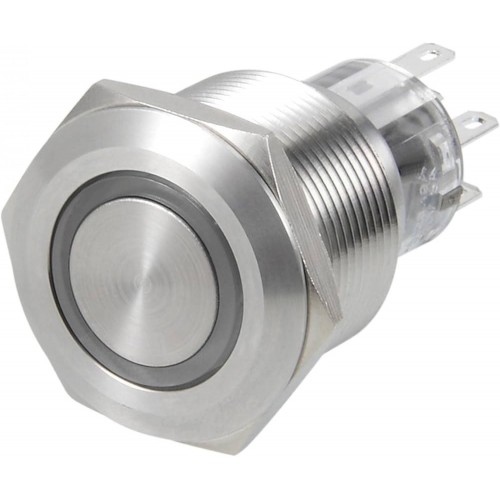

2NO2NC Latching 25mm 24V white Metal Electric Switch

2NO2NC Latching 25mm 24V white Metal Electric Switch

A 2NO2NC latching 25mm 24V white metal electric switch is a specific type of industrial switch used in various electrical applications. The 2NO2NC Latching 25mm 24V White Metal Electric Switch is a durable and reliable push-button switch used in industrial control, machinery, and automation systems. It features a latching mechanism, which means that it stays in its on or off state after being pressed, without needing continuous pressure. The switch is designed for 24V DC systems and includes 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, making it suitable for various electrical control applications.

DNA solutions, Nashik has various types of Switch's. Check out our complete collection of Switch's.

• Thread depth: 16mm (5/8")

• Drill hole diameter: Φ19mm (3/4")

• Head diameter: 22mm (7/8")

• Depth include contacts: 38mm (1.5")

• Switch rating: 5A/250VAC, 5A/30VDC

• LED rating: 15mA, AC/DC 24V

• LED Color: Blue

• Switch contacts: 2NO2NC

• Operation Type: Latching

• Head shape: Flat (flush-button)

• Body material: Aluminium alloy

Specifications of 2NO2NC Latching 25mm 24V white Metal Electric Switch

• Operating Voltage: 24V DC


• Contact Configuration: 2NO (Normally Open), 2NC (Normally Closed)


• Current Rating: 5A at 24V DC (depends on specific model)


• Mounting Hole Size: 25mm diameter


• Switch Type: Latching (self-locking)


• Material: Metal body, usually stainless steel or chrome-plated


• LED Illumination: White LED (operates at 24V DC)


Package Includes

1 x 2NO2NC Latching 25mm 24V white Metal Electric Switch
