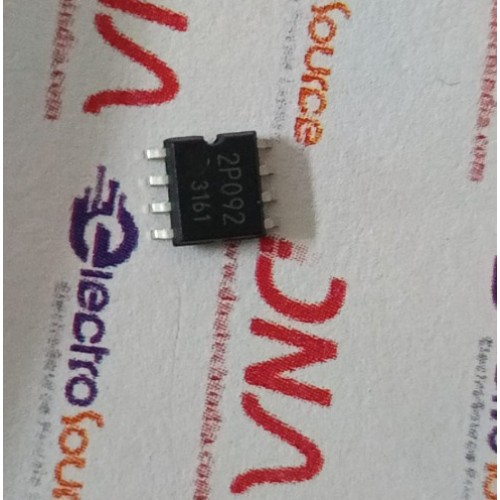

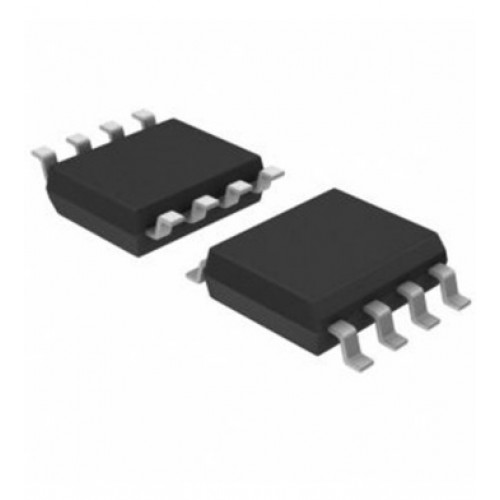

2P092 DC / DC CONVERTER SMD IC

2P092 DC / DC CONVERTER SMD IC

The 2P092 DC/DC Converter IC is engineered to meet the demands of modern electronic systems, offering high efficiency, compact packaging, and robust electrical specifications. Designed for use in space-constrained and low-power applications, it incorporates advanced power management features such as wide input voltage range compatibility, thermal protection, and short-circuit safeguards. The IC supports dual-output configurations, making it ideal for applications requiring symmetric power supplies for operational amplifiers, sensors, and digital devices.

DNA solutions, Nashik has various types of DC-DC Converter IC's. Check out our complete collection of DC-DC Converter IC's.

• Wide Input Voltage Range: Operates efficiently with input voltages ranging from 4.5V to 13.2V DC

• Dual Outputs: Delivers both +12V and -12V outputs, each capable of supplying up to 83mA of current

• High Efficiency: Achieves up to 85% efficiency, ensuring minimal power loss during operation

• Compact SIP-8 Package: Encased in a space-saving SIP-8 package measuring 21.8mm x 11.2mm x 9.1mm, suitable for applications with limited space

• Operating Temperature Range: Functions reliably across a wide temperature range from -40°C to +95°C, making it suitable for various environmental conditions

Specifications of 2P092 DC / DC CONVERTER SMD IC

• Input Voltage Range: 4.5V to 13.2V DC

• Output Voltages: +12V DC and -12V DC

• Output Currents: 83mA for both +12V and -12V outputs

• Maximum Power Output: 2W

• Efficiency: Up to 85%

• Package: SIP-8

• Operating Temperature: -40°C to +95°C

• Switching Frequency: 100kHz

• Isolation Voltage: 1.6kV DC

Applications of 2P092 DC / DC CONVERTER SMD IC

• Industrial Electronics

• Telecommunications

• Medical Devices

• Test and Measurement Equipment

Package Includes

      1 x 2P092 DC / DC CONVERTER SMD IC
