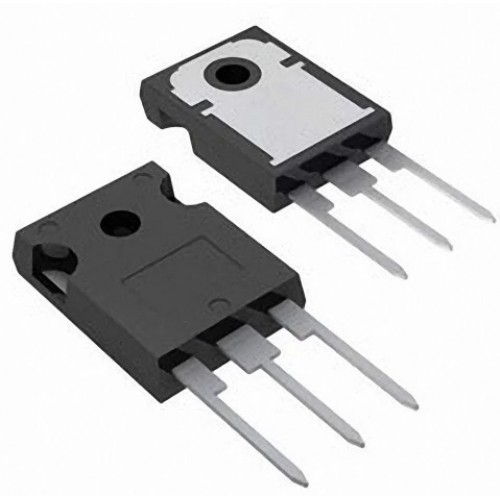

2SC5200 & 2SA1943 pair Original IC

2SC5200 & 2SA1943 pair Original IC

The 2SC5200 is an NPN transistor, while the 2SA1943 is its complementary PNP counterpart. Both are silicon epitaxial-base power transistors designed for high-fidelity audio and other high-power applications. Manufactured by several companies, including Toshiba (original ICs), they are known for their high performance and reliability.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

• High Power Handling: Both transistors can handle significant collector currents, making them suitable for demanding applications

• High Voltage Rating: Designed for use in circuits with high voltage requirements

• Wide Frequency Response: Excellent for audio applications due to their ability to operate over a wide range of frequencies

• Low Distortion: Essential for high-quality sound reproduction in audio amplifier designs

• Durability: High thermal stability and robust design for extended operation

Specifications of 2SC5200 & 2SA1943 pair Original IC

• Maximum Collector-Emitter Voltage: 230V, 230V

• Maximum Collector-Base Voltage: 230V, 230V

• Maximum Emitter-Base Voltage: 5V, 5V

• Maximum Collector Current: 15A, 15A

• Power Dissipation: 150W, 150W

• Current Gain: 55–160, 55–160

• Transition Frequency: 30 MHz, 30 MHz

Package Includes

      1 x 2SC5200 & 2SA1943 pair Original IC
