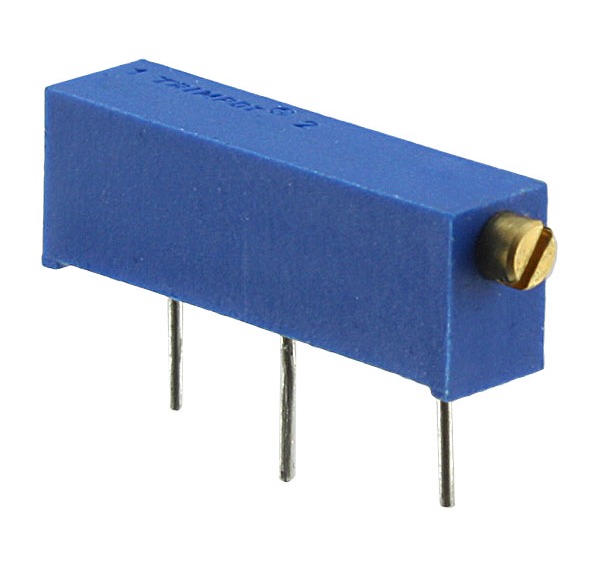

3006P Trimmer Potentiometer

3006P Trimmer Potentiometer

The 3006P is a single-turn, through-hole trimmer potentiometer manufactured by Bourns. It is used for precision tuning in electronic circuits and features a compact, sealed design to protect against dust and moisture. This potentiometer is commonly used for circuit calibration in applications like voltage dividers, signal conditioning, and sensor adjustments.

DNA solutions, Nashik has various types of Potentiometer's. Check out our complete collection of Potentiometer's.

• Single-turn design for simple and precise adjustments

• Sealed package to prevent dust and moisture interference

• Cermet element for high stability and durability

• Vertical adjustment for easy tuning on a PCB

• Through-hole mounting for strong and reliable PCB placement

• Power rating: Typically 0.5W at 70°C

Specifications of 3006P Trimmer Potentiometer

• Resistance Range: 10Ω to 1MΩ

• Power Rating: 0.5W (70°C)

• Adjustment Type: Top-adjustment

• Resistance Tolerance: ±10%

• Temperature Coefficient: ±100 ppm/°C

• Rotational Life: 200 cycles

• Mounting Type: Through-hole

• Termination: PCB solder pins

Applications of 3006P Trimmer Potentiometer

• Calibration and tuning of circuits

• Voltage and current regulation in power supplies

• Signal conditioning in audio and RF applications

• Sensor adjustments in industrial and automotive electronics

• Feedback control in motor controllers and robotics

• Analog circuit fine-tuning in measurement instruments

Package Includes

      1 x 3006P Trimmer Potentiometer
