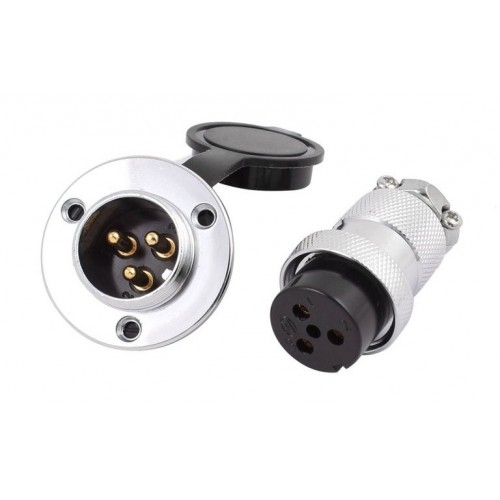

3 PIN GX25 Panel Mounting Connector with flange (Male + Female)

3 PIN GX25 Panel Mounting Connector with flange (Male + Female)

The GX25 3-pin connector is a circular panel-mountable connector that comes with a flange for secure attachment to a panel or enclosure. It is designed for handling both power and signal transmission and is typically used in machinery, robotics, automation systems, and other industrial applications. The connector features a threaded coupling mechanism that provides a stable and vibration-resistant connection between the male and female halves, ensuring the durability and reliability of the connection even in rugged environments.

DNA solutions, Nashik has various types of  Connector's. Check out our complete collection of Connector's.

• 3-Pin Configuration: Suitable for applications requiring three connections, such as power (positive, negative, and ground) or signal wiring.


• Threaded Locking Mechanism: Ensures a secure and vibration-proof connection, ideal for industrial environments or moving equipment.


• Panel Mount with Flange: Includes a front flange with mounting holes, enabling secure attachment to control panels or equipment enclosures.


• Metal Construction: The connector’s body is made of metal, offering enhanced durability, protection from physical impacts, and shielding from electromagnetic interference (EMI).


• Solder Terminals: Inside the connector, there are solder lugs for secure and easy connection to wires.


Specifications of 3 PIN GX25 Panel Mounting Connector with flange (Male + Female)

• Number of Pins: 3 pins (Male and Female pair)


• Connector Diameter (Outer): 25 mm (GX25 standard size)


• Current Rating: Typically up to 10A (depending on wire gauge and application)


• Voltage Rating: 250V AC/DC


• Pin Diameter: 3.0 mm (approx.)


• Shell Material: Nickel-plated brass or zinc alloy for enhanced durability and corrosion resistance


Package Includes

• 1 x 3 PIN GX25 Panel Mounting Connector with flange (Male + Female)
