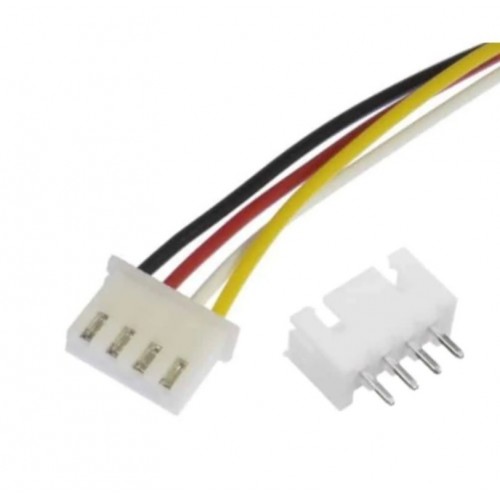

4 Pin 2.00mm JST Straight M/F Relimate Connector

4 Pin 2.00mm JST Straight M/F Relimate Connector

This Relimate connector is designed with a 2.00mm pitch and features 4 pins for data or power transmission. The connector is used primarily in low-power applications and compact electronic devices due to its small size. The female housing has crimp-style terminals to hold wires securely, while the male header is typically mounted on a PCB (printed circuit board) for easy plug-and-play connections. It ensures a firm connection with a locking mechanism to prevent accidental disconnection during vibration or movement. The JST series connectors are widely used in various industries, especially in battery packs, sensors, and other electronic assemblies that require a stable, low-profile connector system.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• Compact size: Small 2.00mm pitch, ideal for tight spaces and compact devices.


• Reliable connection: Features a secure locking mechanism, ensuring stable connections even under motion or vibration.


• Polarized design: Prevents incorrect insertion, with a distinct shape ensuring the connectors only fit in the correct orientation.


• Easy assembly: The female connector is designed to accommodate crimped wires, while the male connector fits easily onto a PCB.


• Versatile applications: Can be used for data transmission, low-power connections, and sensor interfacing in a variety of electronics projects.


• Durable: Made from high-quality plastic and metal materials, ensuring durability and longevity in most environments.


Specifications of 4 Pin 2.00mm JST Straight M/F Relimate Connector

• Connector Type: JST Relimate, Male (Header) and Female (Housing).


• Number of Pins: 4.


• Pitch: 2.00mm.


• Mounting Type: PCB mount (male header), wire crimp (female housing).


• Contact Resistance: Typically less than 20 mΩ.


• Insulation Resistance: 1000 MΩ minimum at 500V DC.


• Current Rating: Up to 1A per pin (depending on wire size and temperature).


Package Includes

• 1 x 4 Pin 2.00mm JST Straight M/F Relimate Connector
