4 PIN IC Base

4 PIN IC Base

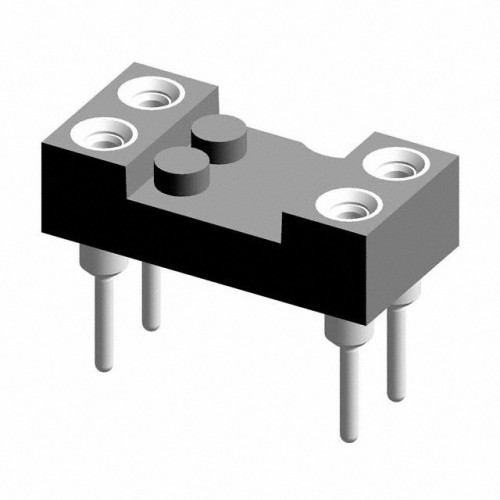

A 4-pin IC base is a small, socket-like component designed to hold and connect 4-pin integrated circuits (ICs) to a circuit board. It allows the IC to be easily inserted or removed without soldering, protecting the IC from potential damage due to excessive heat during soldering. This makes it useful for prototyping, testing, and situations where the IC may need to be replaced or upgraded.

DNA solutions, Nashik has various types of IC Base's. Check out our complete collection of  IC Base's.

• Socket Design: Allows for easy insertion and removal of 4-pin ICs without the need for soldering.


• Material: Typically made from durable plastic (such as PBT or nylon) with gold-plated or tin-plated phosphor bronze contacts to ensure reliable electrical connections.


• Low Profile: Designed to take up minimal space on the PCB, with a low profile that ensures compatibility with most enclosures.


• Pin Compatibility: Standard 2.54mm (0.1 inch) pin spacing to match typical DIP (Dual In-line Package) ICs.


• Mechanical Stability: Securely holds the IC in place, reducing the risk of poor connections or mechanical stress on the IC leads.


Specifications of 4 PIN IC Base

• Pin Count: 4 pins


• Contact Material: Gold-plated or tin-plated phosphor bronze


• Insulation Material: High-temperature plastic such as PBT or nylon


• Contact Resistance: Typically less than 20 milliohms


• Dielectric Withstanding Voltage: 500V AC (minimum)


• Current Rating: Up to 1A per contact


Package Includes

• 1 x 4 PIN IC Base
