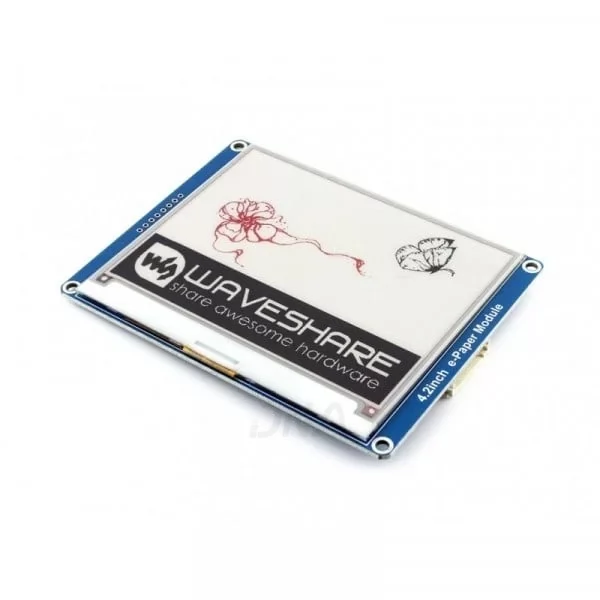

4.2inch 400x300 E-Ink display waveshare module

4.2inch 400x300 E-Ink display waveshare module

Waveshare 4.2-inch e-Ink Paper Display Module with SPI Interface is an E-Ink display module, 2.9inch, 296×128 resolution, with an embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra-low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

There is no backlight so it can keep displaying last content for a long time even when the power is down. As these displays have no backlight panels and it doesn’t need a continuous power supply to display the (static data with periodic intervals) data on the screen, it has a great advantage of ultra-low power consumption. Also, it has a wide viewing angle, great viewing effect under sunlight,  Basically power to the display is only required for refreshing. For connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.. SPI interface can be used.

DNA solutions, Nashik has various types of Waveshare's products. Check out our complete collection of  Waveshare's products.

• E-Ink Technology:

  • Reflective display, highly readable in direct sunlight.
  • Mimics traditional printed text and images.

• Resolution:

  • 400x300 pixels (1-bit monochrome or multi-color depending on variant).

• Interface:

  • SPI interface for easy integration with microcontrollers and development boards like Raspberry Pi, Arduino, and STM32.

• Low Power Consumption:

  • Consumes power only during updates.
  • Ideal for battery-operated devices.

• Wide Viewing Angle:

  • Near-180° viewing angle without color distortion or glare.

• Paper-like Effect:

  • No backlight, reducing eye strain during extended viewing.

• Memory:

  • Integrated display RAM to manage pixel data.

• Refresh Rate:

  • Supports partial and full updates (refresh time varies based on operation).

Specifications of 4.2inch 400x300 E-Ink display waveshare module

• Display Size: 4.2 inches (diagonal)

• Resolution: 400x300 pixels

• Color Options:

1. Black and White (Monochrome)
2. Black, White, and Red (Tri-color model)

• Pixel Pitch: 0.212mm

• Interface: SPI (Serial Peripheral Interface)

• Operating Voltage: 3.3V or 5V (depending on variant)

• Power Consumption:

1. Active (refresh): 26.4mW
2. Standby: negligible

• Refresh Time:

1. Full update: ~2 seconds
2. Partial update: ~0.3 seconds

• Viewing Angle: >170°

• Operating Temperature: 0°C to 50°C

• Dimensions: Module size: ~91mm × 77mm × 1.18mm (varies by model)

• Weight: Light and compact for embedded use.

Package Includes

1 x 4.2inch 400x300 E-Ink display waveshare module
