40 PIN FRC BOX HEADER S/T

40 PIN FRC BOX HEADER S/T

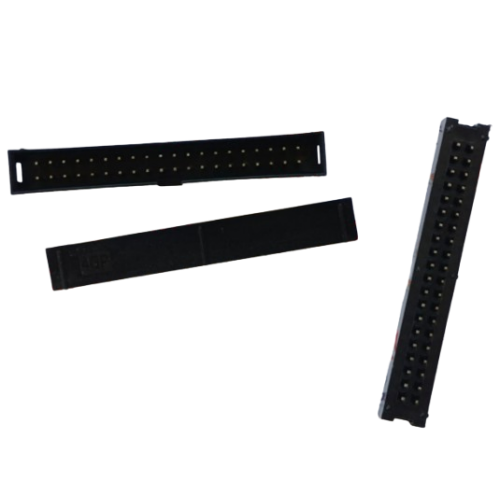

The 40 Pin FRC (Flat Ribbon Cable) Box Header, Straight (S/T) is a type of PCB-mount connector designed for use with flat ribbon cables. It provides a reliable and secure connection between circuit boards and external devices. The box header features a rectangular plastic housing with two alignment notches, ensuring proper cable orientation and reducing the risk of incorrect connections.

DNA solutions, Nashik has various types of Header's. Check out our complete collection of Header's.

• 40-pin configuration for versatile connections

• Straight (S/T) mounting type for direct PCB integration

• Standard 2.54mm (0.1-inch) pitch for compatibility with ribbon cables

• Polarized design to prevent incorrect cable insertion

• Plastic housing with guide slots for secure and stable connections

• Tin/Gold-plated contacts for enhanced conductivity and corrosion resistance

Specifications of 40 PIN FRC BOX HEADER S/T

• Number of Pins: 40
• Mounting Type: Straight (S/T) Through-Hole
• Pitch: 2.54mm
• Contact Material: Copper Alloy
• Plating: Tin/Gold
• Operating Voltage: Varies depending on application
• Current Rating: Typically 1A per pin
• Operating Temperature Range: -40°C to +105°C

Applications of 40 PIN FRC BOX HEADER S/T

• Used in microcontroller and embedded system interfaces

• Employed in computer and industrial control boards

• Used in telecommunication and networking equipment

• Commonly found in consumer electronics and automation devices

• Suitable for data transmission and peripheral device connections

Package Includes

      1 x 40 PIN FRC BOX HEADER S/T
