Product Images are shown for illustrative purposes only and may differ from actual product.

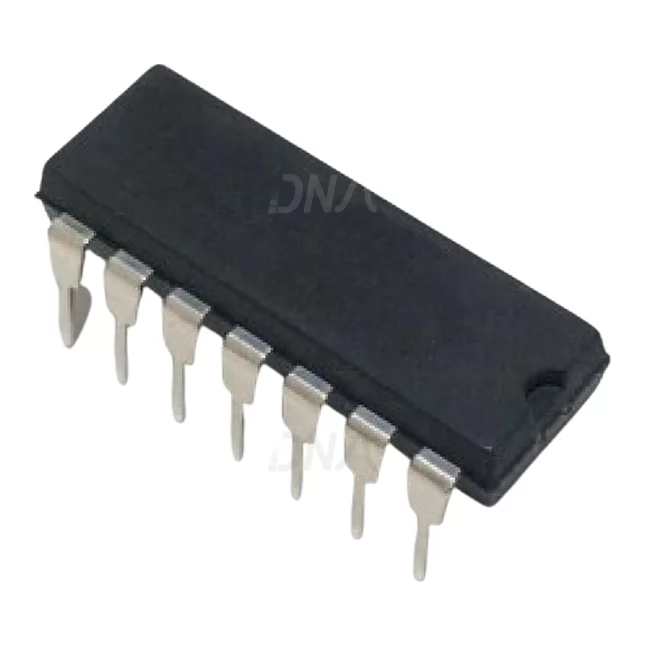

4029 Presettable up-down counter
- Stock: 11
- SKU: 252 | DAA110
-
Rs. 21.24 (inc GST)
Rs.18.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
4029 Presettable up-down counter
CD4029 consists of a four-stage binary or BCD-decade up/down counter with provisions for look-ahead carry in both countingmodes.
The inputs consist of a single CLOCK, CARRY-IN(CLOCK ENABLE), BINARY/DECADE, UP/DOWN, PRESETENABLE, and four individual JAM signals. Q1, Q2, Q3, Q4 and aCARRY OUT signal are provided as outputs.
A high PRESET ENABLE signal allows information on the JAMINPUTS to preset the counter to any state asynchronously withthe clock. A low on each JAM line, when the PRESET-ENABLEsignal is high, resets the counter to its zero count. The counter isadvanced one count at the positive transition of the clock whenthe CARRY-IN and PRE-SET ENABLE signals are low.Advancement is inhibited when the CARRY-IN or PRESETENABLE signals are high. The CARRY-OUT signal is normallyhigh and goes low when the counter reaches its maximum countin the UP mode or the minimum count in the DOWN mode providedthe CARRY-IN signal is low. The CARRY-IN signal in thelow state can thus be considered a CLOCK ENABLE. TheCARRY-IN terminal must be connected to VSS when not in use.
Binary counting is accomplished when the BINARY/DECADEinput is high; the counter counts in the decade mode when theBINARY/DECADE input is low. The counter counts up when theUP/DOWN input is high, and down when the UP/DOWN input islow.Parallel clocking provides synchronous control and hence fasterresponse from all counting outputs. Ripple-clocking allows forlonger clock input rise and fall times.
We have Various sizes of 4000 Series IC's. Check out our complete collection of 4000 Series IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
