• 433Mhz MU3100 RF Transmitter Receiver Module

Product Images are shown for illustrative purposes only and may differ from actual product.

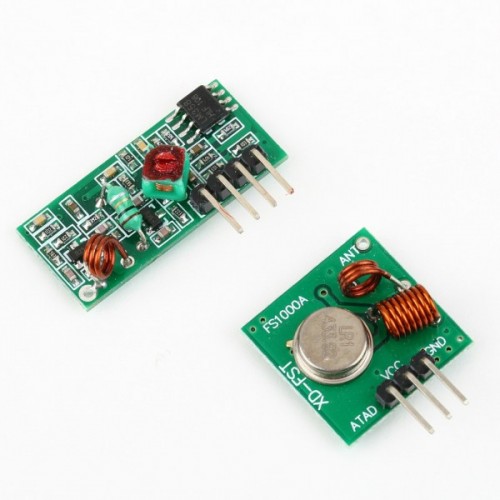

433Mhz MU3100 RF Transmitter Receiver Module

  • Stock: 8
  • SKU: 3619 | DAA872
  • Rs. 187.62 (inc GST)
    Rs.159.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

433Mhz MU3100 Module

433Mhz MU3100 Module

The transmission occurs at the rate of 1Kbps – 10Kbps. The transmitted data is received by an RF receiver operating at the same frequency as that of the transmitter.

433mHz Tx RF Radio Module comprises an RF Transmitter and an RF Receiver. The transmitter/receiver (Tx/Rx) pair operates at a frequency of 433 MHz. An RF transmitter receives serial data and transmits it wirelessly through RF through its antenna connected at pin4.

This low-cost RF transmitter can be used to transmit signals up to 100 meters (the antenna design, working environment, and supply voltage will seriously impact the effective distance). It’s good for a short distance, battery power device development. 433 MHz is the operating frequency for transmitter and receiver pair.

DNA solutions, Nashik has various types of Communication Module's. Check out our complete collection of  Communication Modules.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 433Mhz MU3100 Module

  • The device in deep sleep mode when Data pin is grounded
  • Easy to integrate (V , GND, and D)
  • Wide input supply (2.5 V to 12V)
  • Very small dimension.

  • Transmitter Module

        Technical parameters of
        Product Model: XD-FST
  • Operating mode: AM
  • Launch distance:20-200 meters (different voltage, different results)
  • Transfer rate: 4KB / S
  • Transmitting power: 10mW
  • Operating voltage :3.5-12V
  • Dimensions: 19 * 19mm
  • Transmitting frequency: 433M
  • Pinout from left-right: (DATA; VCC; GND)

Receiver Module:

  • Product Model: XD-RF-5V
  • Receiving frequency: 433.92MHZ
  • Receiver sensitivity: -105DB
  • Size:30x14x7mm
  • Operating voltage: DC 5V
  • Quiescent Current: 4mA

    Package Includes

    1 x 433Mhz MU3100 Module

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
