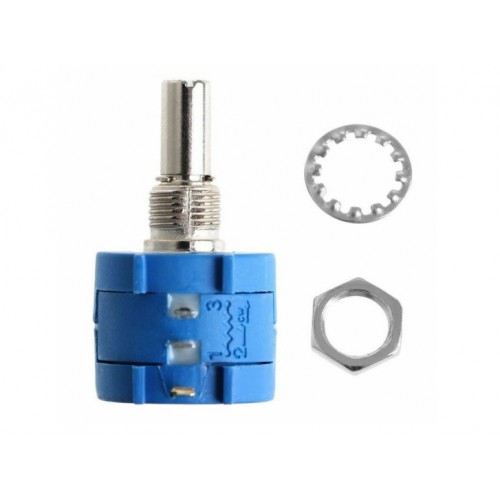

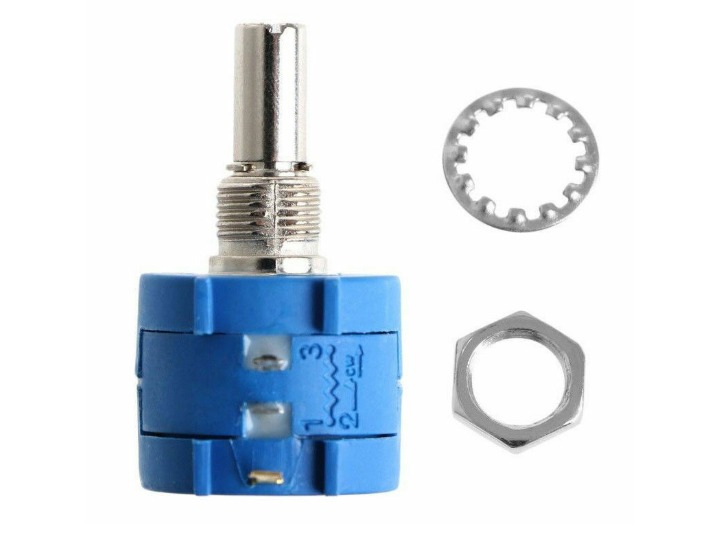

5K 3590 Multiturn Potentiometer

5K 3590 Multiturn Potentiometer

The 3590 series multiturn potentiometer is a high-precision variable resistor with wire-wound or conductive plastic elements. It is widely used in industrial and electronic applications requiring precise resistance control. The 5K ohm (5000Ω) variant is commonly used in control circuits, calibration equipment, and voltage dividers.

DNA solutions, Nashik has various types of Potentiometer's. Check out our complete collection of Potentiometer's.

• High Precision: Offers fine resistance adjustment with multiple turns

• Multi-Turn Design: Typically 10-turn for accurate tuning

• Long Lifespan: Designed for durability and reliability

• Wire-Wound / Conductive Plastic: Ensures stability and low noise operation

• Compact & Robust: Metal casing for durability

• Locking Mechanism: Some variants include a locking shaft to maintain settings

• Panel Mountable: Can be easily mounted on a control panel

Specifications of 5K 3590 Multiturn Potentiometer

• Resistance Value: 5KΩ (5000 ohms)

• Type: Multiturn, Wire-Wound

• Resistance Tolerance: ±5% (varies by manufacturer)

• Power Rating: 2W (typical)

• Number of Turns: 10 turns

• Rotational Life: Over 200,000 cycles

• Shaft Diameter: 6.35mm (1/4 inch)

• Mounting Type: Panel mount with nut and washer

• Operating Temperature Range: -55°C to +125°C

Applications of 5K 3590 Multiturn Potentiometer

• Industrial Automation

• Calibration Equipment

• Audio Controls

• Robotics

• Power Supplies

• Medical Instruments

Package Includes

      1 x 5K 3590 Multiturn Potentiometer
