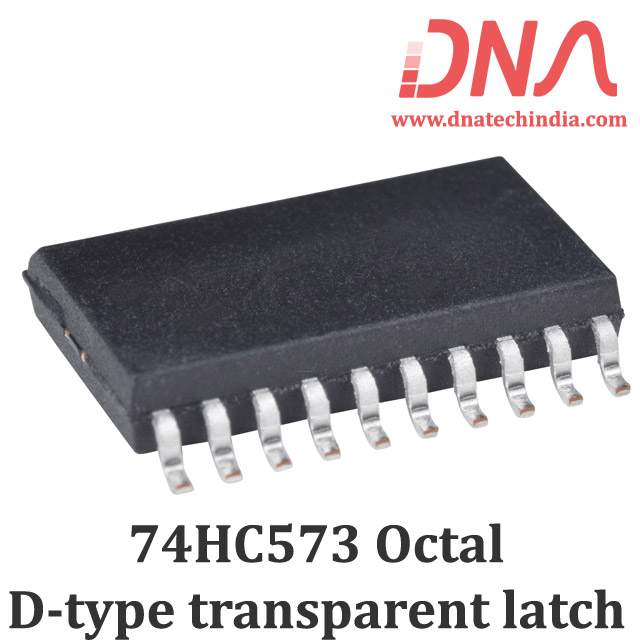

74HC573D Octal D-type transparent latch (SMD SO20 Package)

74573, 74HC573D Octal D-type transparent latch; 3-state in SMD SO20 Package (Width 7.5mm)

The 74HC573 is an 8-bit D-type transparent latch with 3-state outputs. The 74HC573D IC features latch enable (LE) and output enable (OE) inputs. When LE is HIGH, data at the inputs enter the latches. In this condition the latches are transparent, a latch output will change each time its corresponding D-input changes. When LE is LOW the latches store the information that was present at the inputs a set-up time preceding the HIGH-to-LOW transition of LE. A HIGH on OE of 74573 Latch IC causes the outputs to assume a high-impedance OFF-state. Operation of the OE input does not affect the state of the latches. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

DNA solutions,Nashik has various types of 74 series IC's. Check out our complete collection of 74XX series IC's.

Features of 74HC573 Octal D-type transparent latch

• Wide supply voltage range from 2.0 to 6.0 V

• CMOS low power dissipation
• High noise immunity
• Input levels: For 74HC573: CMOS level
• Input levels: For 74HCT573: TTL level
• Inputs and outputs on opposite sides of package allowing easy interface with microprocessors
• Useful as input or output port for microprocessors and microcomputers
• 3-state non-inverting outputs for bus-oriented applications
• Common 3-state output enable input
• Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
• Complies with JEDEC standards:
• JESD8C (2.7 V to 3.6 V)
• JESD7A (2.0 V to 6.0 V)
• Specified from -40 °C to +85 °C and from -40 °C to +125 °C

Related Links

• 74HC573 Octal D-type transparent latch Datasheet

Package Includes

1 x 74HC573 Octal D-type transparent latch (SMD SO20 Package, 74573)
