  • 74HC138D Demultiplexer/Decoder IC 16-SOIC

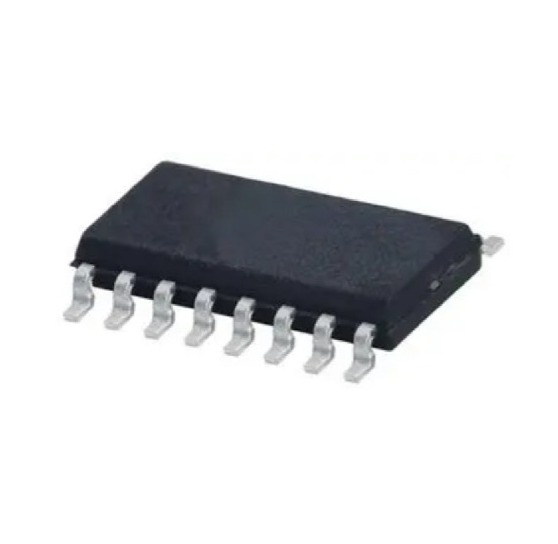

Product Images are shown for illustrative purposes only and may differ from actual product.

74HC138D Demultiplexer/Decoder IC 16-SOIC


Write a review | 0 reviews

  • Stock: Out Of Stock
  • SKU: 8077 | DAH174
  • Rs. 22.07 (inc GST)
    Rs.18.70 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

74HC138D Demultiplexer/Decoder IC 16-SOIC

74HC138D Demultiplexer/Decoder IC 16-SOIC

The 74HC138D is a high-speed Si-gate CMOS device and is pin-compatible with low-power Schottky TTL (LSTTL). The 74HC138D decoder accepts three binary weighted address inputs (A0, A1, and A3) and when enabled, provides 8 mutually exclusive active LOW outputs (Y0 to Y7). This device features three enable inputs: two active LOW (E1 and E2) and one active HIGH (E3). Every output is HIGH unless E1 and E2 are LOW and E3 is HIGH.

DNA solutions, Nashik has various types of Demultiplexer IC's. Check out our complete collection of Demultiplexer IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 74HC138D Demultiplexer/Decoder IC 16-SOIC

  • Demultiplexing capability
  • Multiple inputs enable easy expansion
  • Complies with JEDEC standard no. 7A
  • Ideal for memory chip select decoding
  • Active LOW mutually exclusive outputs

Specifications of 74HC138D Demultiplexer/Decoder IC 16-SOIC

  • Manufacturer: Nexperia
  • IC Type: Mux/Demux
  • Product Range: 74HC138; 74HCT138
  • Logic Type: Decoder / Demultiplexer
  • No. of Pins: 16Pins
  • Min Supply Voltage: 2V
  • Max. Supply Voltage (V): 6V
  • Logic IC Family: 74HC

Applications of 74HC138D Demultiplexer/Decoder IC 16-SOIC

  • Clock & Timing
  • Consumer Electronics
  • Aerospace, Defense
  • Military
  • Embedded Design & Development
  • Robotics

    Package Includes

          1 x 74HC138D Demultiplexer/Decoder IC 16-SOIC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
