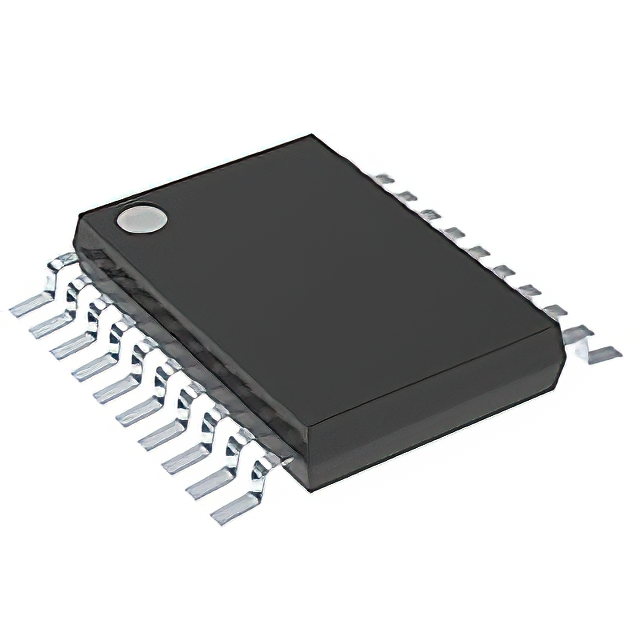

74HCT245MTCX SMD IC, Octal bus transceiver

74HCT245MTCX SMD IC- Octal bus transceiver

The 74HCT245D is an Octal Transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions. It features an output enable input (OE) for easy cascading and a send/receive input (DIR) for direction control. OE controls the outputs so that the buses are effectively isolated. This is a high-speed Si-gate CMOS Device and is pin compatible with low-power Schottky TTL (LSTTL).

DNA solutions, Nashik has various types of SMD IC's. Check out our complete collection of  SMD IC's.

• Octal bidirectional bus interface


• Non-inverting 3-state outputs


• ±0.1μA Input leakage current


• ±0.5μA Off-state output current


• 8μA Quiescent supply current


• Complies with JEDEC standard number 7A


Specifications of 74HCT245MTCX SMD IC- Octal bus transceiver

• Logic Family: HCT (High-Speed CMOS with TTL-compatible inputs)


• Supply Voltage (Vcc): 4.5V to 5.5V


• Input Voltage: Compatible with TTL levels


• Propagation Delay: Typically around 7 ns (from input to output)


• Operating Temperature Range: -40°C to +85°C


• Power Dissipation: 500 mW maximum


Package Includes

• 1 x 74HCT245MTCX SMD IC-Octal bus transceiver
