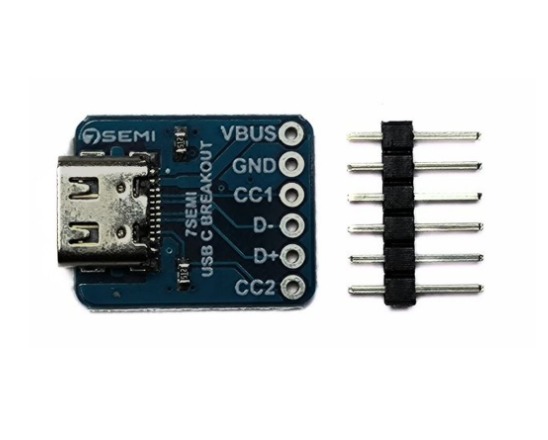

7Semi USB-C Female Breakout

7Semi USB-C Female Breakout

The USB-C Breakout Board offers an effortless solution for integrating a USB-C connector into your projects without the need for soldering tiny SMD pads. It features VBUS, GND, CC1, CC2, D+, and D- pins on a 0.1" header and provides a nominal 1.5A of power and up to 3A, depending on the upstream device. A USB Type-C Breakout is a hardware device that allows easy connection of USB Type-C ports to other devices. It typically consists of a small printed circuit board with a USB Type-C connector on one end and one or more pins or connectors on the other end that can be used to connect to other devices.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

• USB-C Female Connector for easy integration with USB-C devices

• Breakout of key USB-C pins including VBUS, GND, D+, D-, CC1, CC2

• Supports USB 2.0 and power delivery (PD) communication

• Compact PCB design for easy prototyping and integration

• Can be used for power and data transfer applications

• Standard 2.54mm (0.1-inch) pin headers for breadboard compatibility

Specifications of 7Semi USB-C Female Breakout

• Connector Type: USB Type-C Female

• Supported Protocols: USB 2.0, USB Power Delivery (PD)

• Pinout: VBUS, GND, D+, D-, CC1, CC2, and other essential connections

• Power Input: Supports 5V and USB PD for higher voltages

• Board Size: Compact and lightweight

Applications of 7Semi USB-C Female Breakout

• Prototyping and development of USB-C powered devices

• Power supply applications using USB-C power sources

• Data communication projects using USB 2.0 signals

• USB-C to microcontroller interfacing for custom embedded systems

• Testing and debugging USB-C connections in electronics projects

Package Includes

      1 x 7Semi USB-C Female Breakout
