8 PIN GX25 Panel Mounting Connector with flange (Male + Female)

8 PIN GX25 Panel Mounting Connector with flange (Male + Female)

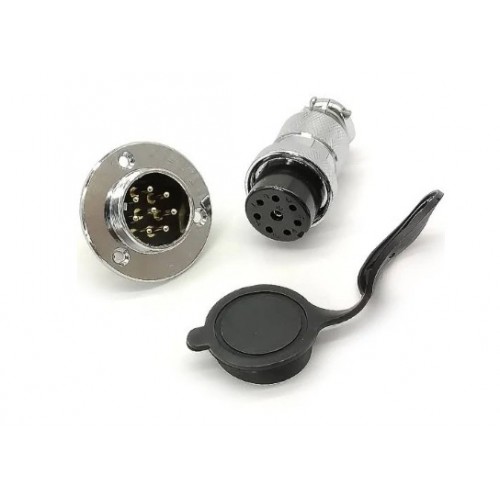

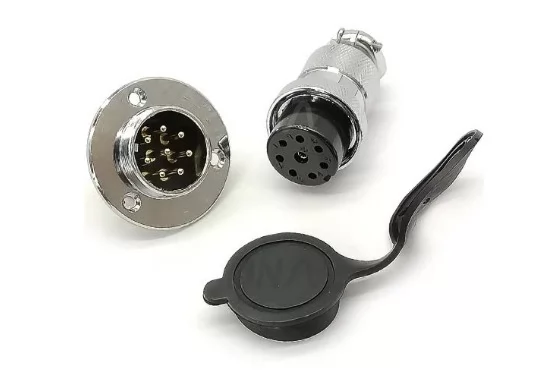

The GX25 8-pin panel mounting connector comes as a set of male and female connectors, both featuring a circular metal body with a flange for panel mounting. The connector is designed to provide a secure and reliable connection with 8 pins, allowing for multi-signal or power transmission. The connectors are usually made of metal for durability and have a screw-lock mechanism to ensure a tight and secure connection.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• 8-Pin Configuration: Provides multiple connections in a single interface, supporting various signal or power lines.


• Circular Metal Body: Robust and durable metal housing that provides excellent mechanical protection and EMI shielding.


• Flange Mounting Design: The flange allows for secure panel or surface mounting, providing stability and a neat installation.


• Screw-Lock Mechanism: Ensures a secure and reliable connection, preventing accidental disconnection or loosening.


• Waterproof and Dustproof: Typically rated to provide protection against environmental elements, such as dust and moisture (IP65 or higher).


Specifications of 8 PIN GX25 Panel Mounting Connector with flange (Male + Female)

• Connector Type: GX25 circular connector


• Pin Count: 8 pins (male and female)


• Mounting Style: Panel mount with flange (screws required for mounting)


• Body Material: Metal (typically zinc alloy or aluminum alloy)


• Contact Material: Brass or copper alloy with silver or gold plating for improved conductivity and corrosion resistance


• Rated Voltage: 250V AC/DC


• Rated Current: 5A per pin


• Insulation Resistance: ≥ 1000 MΩ at 500V DC


Package Includes

• 1 x 8 PIN GX25 Panel Mounting Connector with flange (Male + Female)
