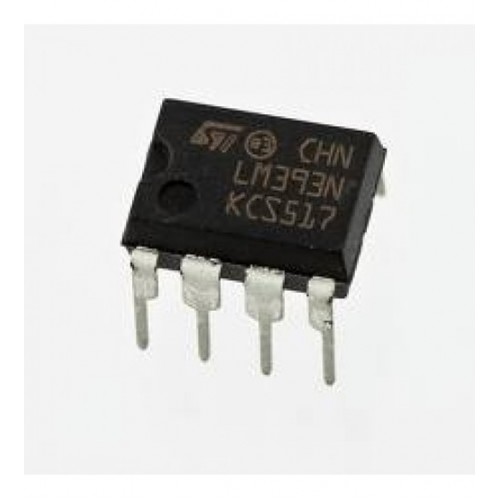

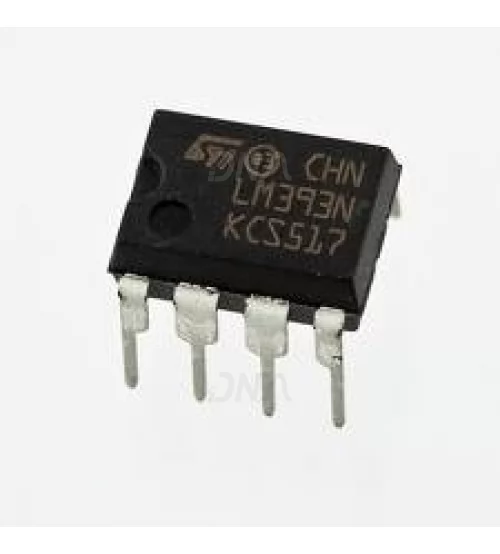

LM393 Comparator IC

LM393 Low Offset Voltage Dual Comparator

LM393 is a dual precision voltage comparator IC capable of single or dual supply operation. LM393 IC is designed to permit a common mode range−to−ground level with single supply operation. Input offset voltage specifications as low as 2.0 mVolt make this device an excellent selection for many applications in consumer, automotive, and industrial electronics.

LM393 IC is used in most of the digital comparator Modules that is used in GAS sensor modules, rain sensors etc.

Features of LM393 Comparator IC

• Wide Single−Supply Range : 2.0 Vdc to 36 Vdc

• Split−Supply Range : ±1.0 Vdc to ±18 Vdc

• Very Low Current Drain Independent of Supply Voltage : 0.4 mA

• Low Input Bias Current : 25 nA

• Low Input Offset Current : 5.0 nA

• Low Input Offset Voltage : 5.0 mV (max) LM293/393

• Input Common Mode Range to Ground Level

• Differential Input Voltage Range Equal to Power Supply Voltage

• Output Voltage Compatible with DTL, ECL, TTL, MOS, and CMOS Logic Levels

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
