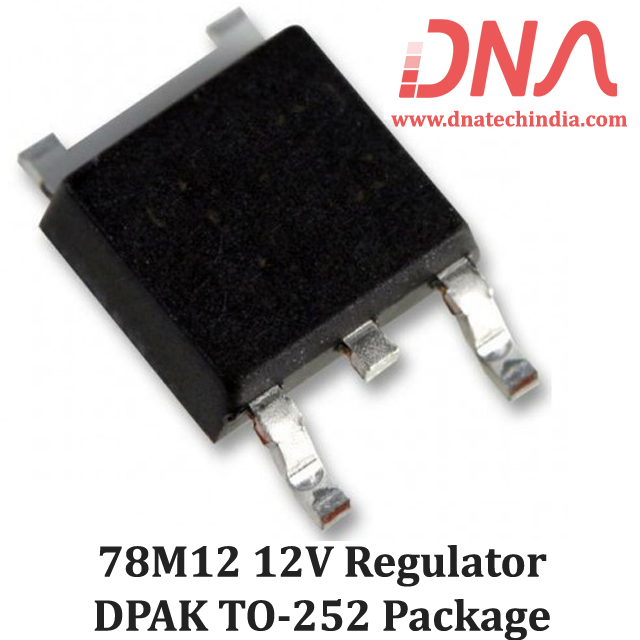

MC78M12 SMD TO-252 DPAK Package

12 volts MC7812 voltage requlator in TO-252 DPAK Package

The MC78M00/MC78M00A Series positive voltage regulators are identical to the popular MC7800 Series devices, except that they are specified for only half the output current. Like the MC7800 devices, the MC78M00 three terminal voltage regulators are intended for local, on−card voltage regulation. Internal current limiting, thermal shutdown circuitry and safe−area compensation for the internal pass transistor combine to make these devices remarkably rugged under most operating conditions. Maximum output current, with adequate heatsinking is 500 mA. The MC78M12 is a To-252 DPAK SMD version of the famous LM7812 voltage regulator.

We have Various types of Voltage Regulators. Check out our complete collection of through hole and SMD voltage Regulators.

Features of MC78M12 DPAK Voltage Regulator

• No External Components Required
• Internal Thermal Overload Protection
• Internal Short Circuit Current Limiting
• Output Transistor Safe−Area Compensation
• MC78M00A High Accuracy (2%) Available for 5.0 V, 8.0 V, 12 V and 15 V
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free Devices

Specification of MC78M12 DPAK Voltage Regulator

• Product Category : Linear Voltage Regulators

• RoHS : N

• Mounting Style : SMD/SMT

• Package/Case : TO-252-3

• Number of Outputs : 1 Output

• Polarity : Positive

• Output Voltage : 12 V

• Output Current : 500 mA

• Output Type : Fixed

• Input Voltage MAX : 35 V

• Input Voltage MIN : 35 V

• Minimum Operating Temperature : 0 C

• Maximum Operating Temperature : + 125 C

• Load Regulation : 240 mV

• Line Regulation : 50 mV

Related Link

• MC78M12 Datasheet
