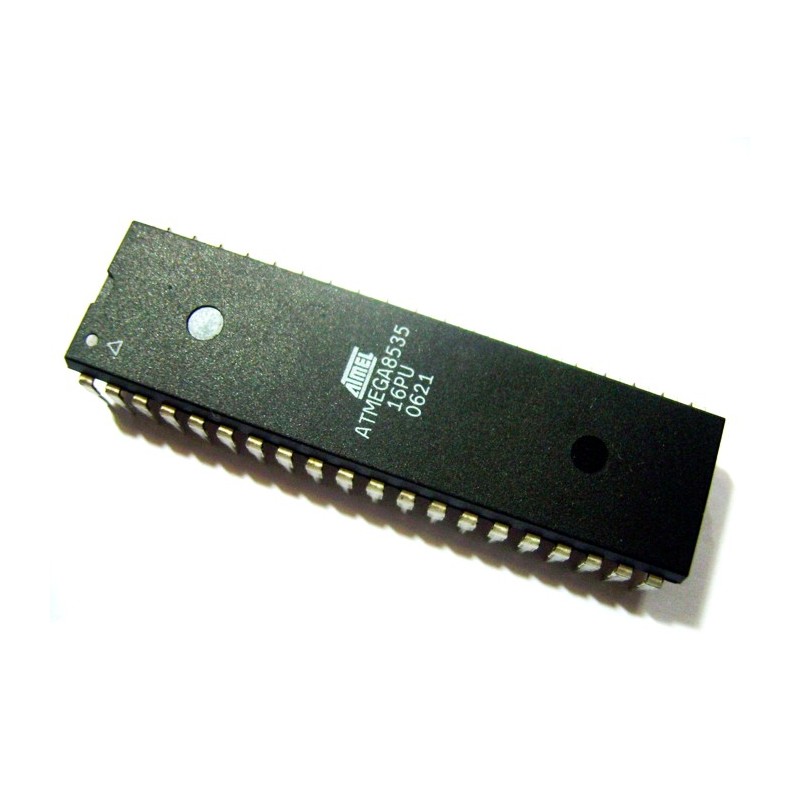

Atmega8535 Microcontroller

 The device supports throughput of 16 MIPS at 16MHz and operates between 4.5-5.5 volts.

Atmega8535 is a high-performance, low-power Atmel 8-bit AVR RISC-based microcontroller combines 8KB of programmable flash memory, 544B SRAM, 512B EEPROM, and an 8-channel 10-bit A/D converter.

By executing instructions in a single clock cycle, the device achieves through puts approaching 1 MIPS per MHz, balancing power consumption and processing speed.

Features of Atmega8535

• Flash (kBytes) : 8 kBytes

• Pin Count : 44

• Max. Operating Freq. (MHz) : 16 MHz

• CPU : 8-bit AVR

• # of Touch Channels : 16

• Hardware QTouch Acquisition : No

• Max I/O Pins : 32

• Ext Interrupts : 3

• USB Speed : No

• USB Interface : No

• SPI : 1

• TWI (I2C) : 1

• UART : 1

• Graphic LCD : No

• Video Decoder : No

• Camera Interface : No

• ADC Channels : 8

• ADC Resolution (bits) : 10

• ADC Speed (ksps) : 15

• Analog Comparators : 1

• Resistive Touch Screen : No

• DAC Channels : 0

• DAC Resolution (bits) : 0

• Temp. Sensor : No

• Crypto Engine : No

• SRAM (kBytes) : 0.5

• EEPROM (Bytes) : 512

• Self Program Memory : Yes

• External Bus Interface : 0

• DRAM Memory : No

• NAND Interface : No

• pico-Power : No

• Temp. Range (deg C) : -40 to 85

• I/O Supply Class : 2.7 to 5.5

• Operating Voltage (Vcc) : 2.7 to 5.5

• FPU : No

• MPU / MMU : no / no

• Timers : 3

• Output Compare Channels : 4

• Input Capture Channels : 1

• PWM Channels : 4

• 32kHz RTC : Yes

• Calibrated RC Oscillator : Yes

• Watchdog : Yes

• CAN : 0

• LIN : 0

• Ethernet : 0

• I2S : No
