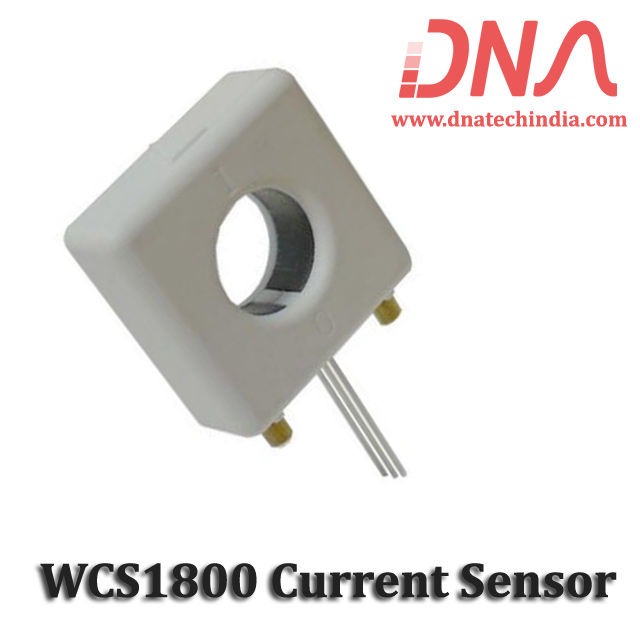

WCS1800 Hall Effect Linear Current Sensor

Write a review | 0 reviews

Stock: 19

Brand: Winson

SKU: 0304 | DAA585

Rs. 306.80 (inc GST)
Rs.260.00 + GST

Qty :
Qty

Electronic Component of the Week (ELCOW) Raspberry Pi 3B+ In Stock

GST Invoice on all Purchase. So you will be eligible to take input tax credit.
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.
Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

Description

WCS1800 Hall Effect Linear Current Sensor

WCS1800 Current Sensor with 0 to 35 Ampere current sensing range and sensitivity of 66 mv/A.

The Winson WCS1800 current sensor provides economical and precise solution for both DC and AC current sensing in industrial, commercial and communications systems.

The unique package provides easy implementation without breaking original system and makes current sensing possible. Typical applications include motor control, load detection and management, over-current fault detection and any intelligent power management system etc…

The WCS1800 Current Sensor consists of a precise, low-temperature drift linear hall sensor IC with temperature compensation circuit and a diameter 9.0mm through hole. Users can use system’s own electric wire by pass it through this hole to measure passing current. This design allows system designers to monitor any current path without breaking or changing original system layout at all. Any current flowing through this hole will generate a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage. The terminals of the conductive path are electrically isolated from the sensor leads.

This allows the WCS1800 current sensor to be used in applications requiring electrical isolation without the use of opto-isolators or other costly isolation techniques and make system more competitive in cost.

DNA Solutions has a large collection of various types of Current and Voltage Sensors. Check our complete collection of Current and Voltage Sensor.

Features of WCS1800 Hall effect Linear Current Sensor

Diameter 9.0 mm conductor through hole
Output voltage proportional to AC and DC current
Wide sensing current range 0~35 Ampere at 5 volt.
High sensitivity 66 mV/A
Wide operating voltage range 3.0~12 Volts.
Low operating current 3mA
Isolation voltage 4000 Volts
Ratiometric output from supply voltage

Two bronze sticks for easy soldering on PCB

WCS1800 Current Sensor Datasheet
