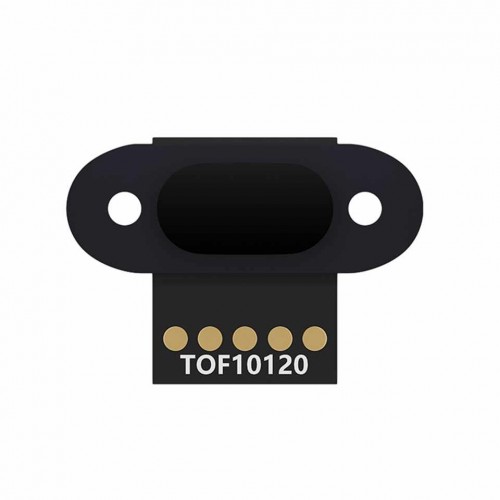

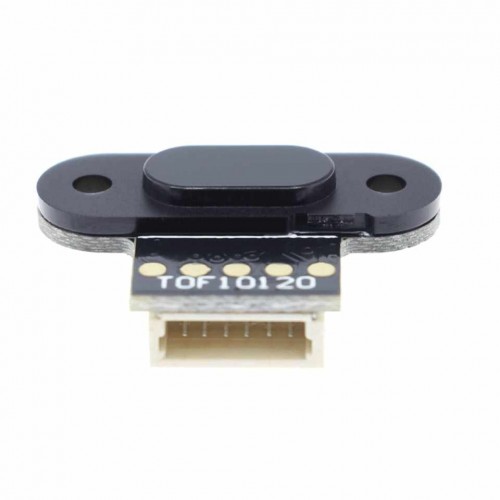

Laser Range Sensor Module TOF10120 10 to 180 cm Distance Sensor

Laser Range Sensor Module TOF10120 10 to 180 cm Distance Sensor with RS232 Interface

TOF10120 range sensor provides accurate and repeatable long range distance measurement for high-speed autofocus (AF). The innovative time-of-flight technology allows performance independent of object reflectance.

TOF10120’s time-of-flight sensing technology is realized by Sharp’s original SPAD (Single Photon Avalanche Diodes ) using low-cost standard CMOS process. It enables accurate ranging result, higher immunity to ambient light and better robustness to cover-glass optical cross-talk by special optical package design.

Features of TOF10120 Laser Range Sensor Module

• 940nm laser classified as class 1 under operation condition by IEC 60825-1:2014-3rd edition

• Small ceramic package(20 × 13.2 × 2.0 mm)

• Long range absolute range measurement up to 1.8m within 5％ accuracy at indoor

• Reported range is independent of the target reflectance

• Operates in high infrared ambient light levels

• Advanced optical cross-talk compensation

• High speed ranging MAX 30ms

• Standard solder reflow compatible

• No additional optics

• Single power supply

• Txd interface for device control and data transfer

• High-speed AF

• Continuous AF for video

Application for TOF1020 Laser Distance Sensor

• User detection for Personal Computers

• Laptops/Tablets

• Robotics (obstacle detection)

• White goods

Specification of TOF1020 Laser Distance Sensor

• Ranging Range  100 to 1800 mm

• VCC  3 to 5 Volts

• ICC_VDD 35mA

• Topr  － 20 ＋ 70 °C

• Tstg  － 40 ＋ 85 °C

Communication protocol for TOF1020 Laser Distance Sensor

• Bits per Second : 9600

• Data Bits : 8

• Parity : None

• Stop bits : 1

• Flow Control : None

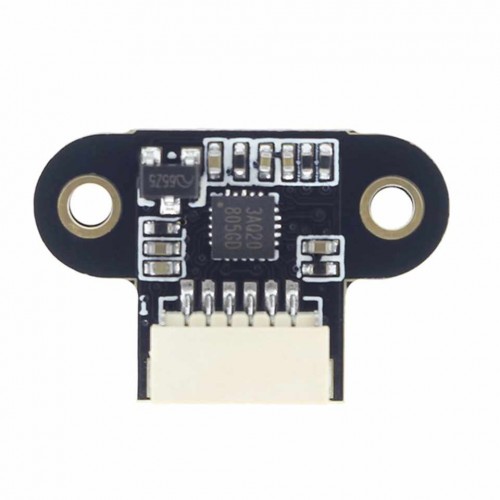

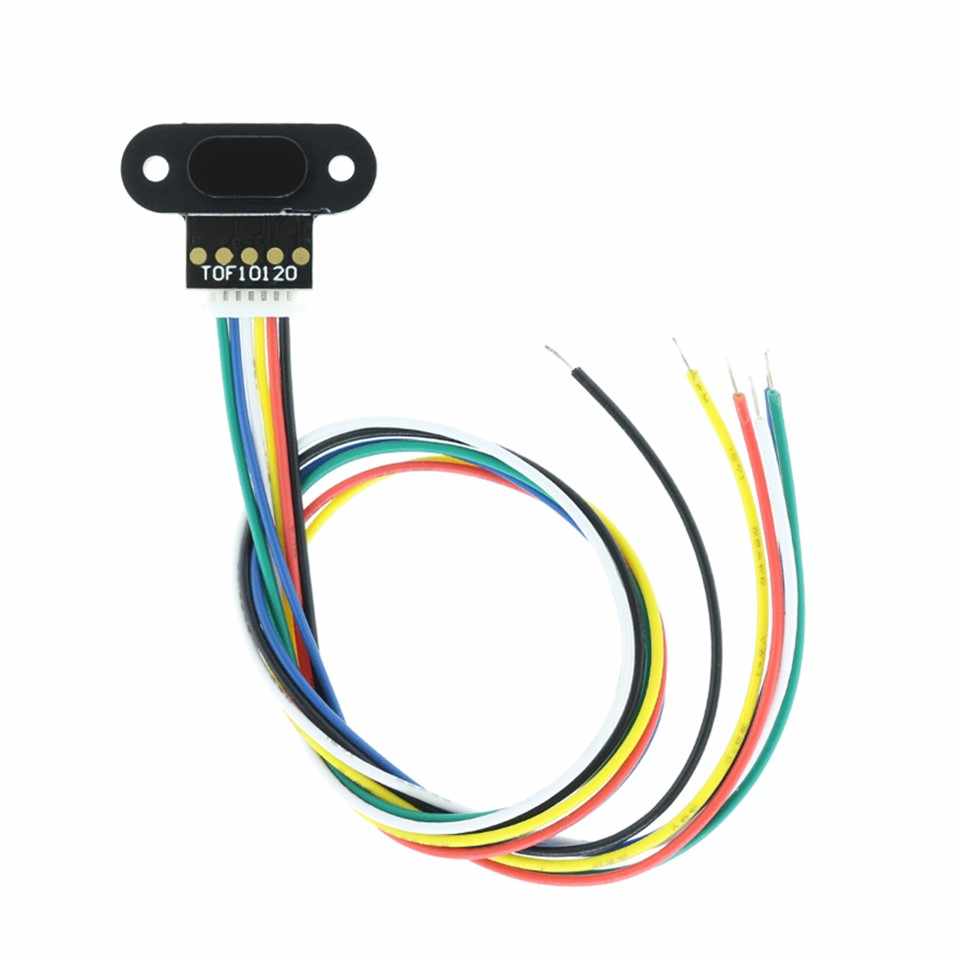

Pinout for TOF10120 Module

1. GND Black
2. VCC Red
3. RXD Yellow
4. TXD white
5. SDA blue
6. SCL purple
