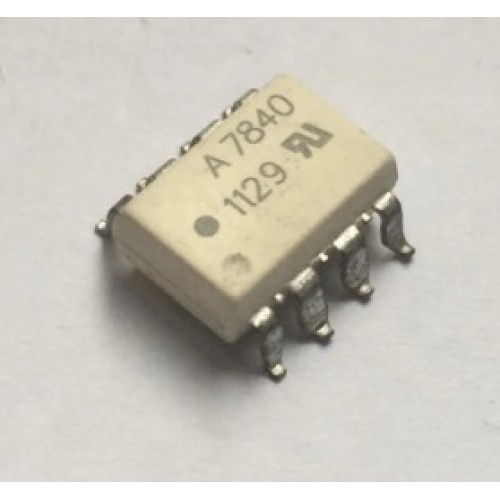

Product Images are shown for illustrative purposes only and may differ from actual product.
A7840 Isolation Amplifier SMD IC SOP-8
- Stock: Out Of Stock NotInStock
- SKU: 7117 | DAF499
-
Rs.
254.88 (inc GST)
Rs.216.00 + GSTQty :
GST Invoice on all Purchase. So you will be eligible to take input tax credit. |
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com. |
| Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location. |
A7840 Isolation Amplifier SMD IC SOP-8
A7840 Isolation Amplifier SMD IC SOP-8
The HCPL-7840 isolation amplifier family was designed for current sensing in electronic motor drives. In a typical implementation, motor currents flow through an external resistor and the resulting analog voltage drop is sensed by the HCPL-7840. A differential output voltage is created on the other side of the HCPL-7840 optical isolation barrier. This differential output voltage is proportional to the motor current and can be converted to a single-ended signal by using an op-amp as shown in there commended application circuit.
Since common-mode voltage swings of several hundred volts in tens of nanoseconds are common in modern switching inverter motor drives, the HCPL-7840 was designed to ignore very high common-mode transient slew rates (of at least 10 kV/µs).
DNA solutions, Nashik has various types of Amplifier's. Check out our complete collection of Amplifier's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of A7840 Isolation Amplifier SMD IC SOP-8
- 15 kV/µs Common-Mode Rejection at VCM = 1000 V
- Compact, Auto-Insertable Standard 8-pin DIP Package
- 0.3 mV Input Offset Voltage
- 100 kHz Bandwidth
- 0.004% Nonlinearity
- Worldwide Safety Approval: UL 1577 (3750 V rms /1 min.) and CSA (pending), VDE 0884 (Option #060 only)
- Fully Differential Circuit Topology
Applications of GR 400 2R5-K Resistor
- Motor Phase and Rail Current Sensing
- Inverter Current Sensing
- Switched Mode Power Supply Signal Isolation
- General Purpose Current Sensing and Monitoring
- General Purpose Analog Signal Isolation
Package Includes
1 x A7840 Isolation Amplifier SMD IC SOP-8
