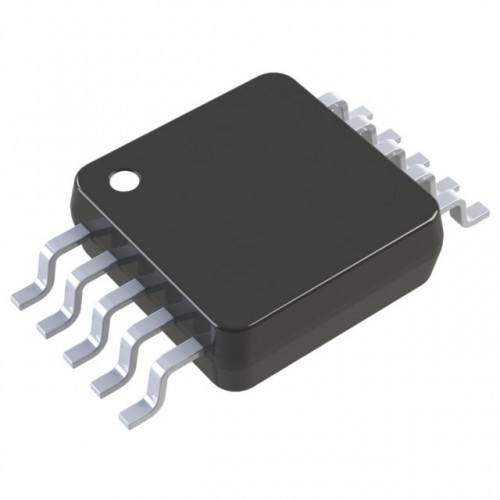

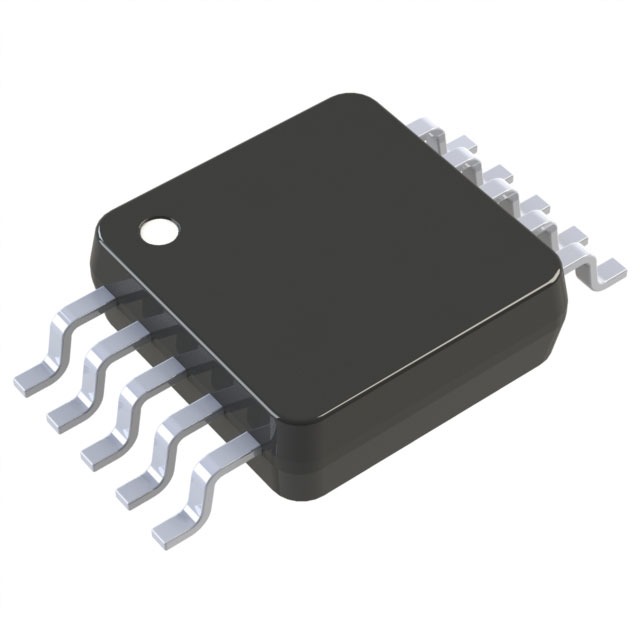

AD5175BRMZ-10-RL7 Single-Channel, Digital Rheostat with I2C Interface IC

AD5175BRMZ-10-RL7 Single-Channel, Digital Rheostat with I2C Interface IC

The AD5175BRMZ-10-RL7 is a single-channel, 1024-position digital rheostat that combines industry leading variable resistor performance with nonvolatile memory (NVM) in a compact package. This device supports both dual-supply operation at ±2.5 V to ±2.75 V and single-supply operation at 2.7 V to 5.5 V, and offers 50-times programmable (50-TP) memory. The AD5175 device wiper settings are controllable through the compatible digital interface. Unlimited adjustments are allowed before programming the resistance value into the 50-TP memory. The AD5175 does not require any external voltage supply to facilitate fuse blow and there are 50 opportunities for permanent programming. During 50-TP activation, Na permanent blow fuse command freezes the resistance position (analogous to placing epoxy on a mechanical rheostat).

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

• Single-channel, 1024-position resolution


• 10 kΩ nominal resistance


• 50-times programmable (50-TP) wiper memory


• Rheostat mode temperature coefficient: 35 ppm/°C


• 2.7 V to 5.5 V single-supply operation


• ±2.5 V to ±2.75 V dual-supply operation for ac or bipolar operations


Applications of AD5175BRMZ-10-RL7 Single-Channel, Digital Rheostat with I2C Interface IC

• Mechanical rheostat replacements


• Op-amp: variable gain control


• Instrumentation: gain, offset adjustment


• Programmable voltage to current conversions


• Programmable filters, delays, time constants


• Programmable power supply


Package Includes

• 1 x AD5175BRMZ-10-RL7 Single-Channel, Digital Rheostat with I2C Interface IC
