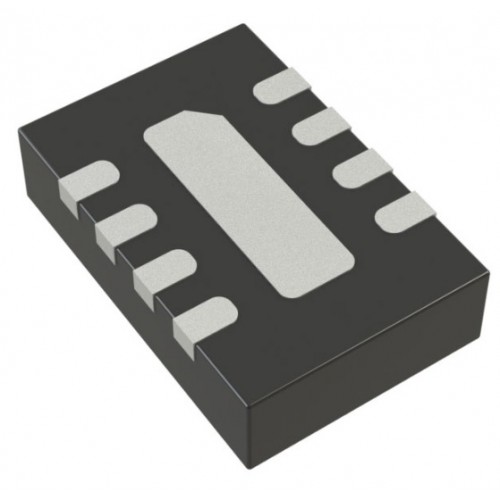

AD8317ACPZ-R7 Logarithmic Amplifier

AD8317ACPZ-R7 Logarithmic Amplifier

The AD8317ACPZ-R7 is a high-speed, wide dynamic range logarithmic amplifier designed for use in RF and microwave signal chains. It operates over a broad frequency range and provides accurate RF signal power measurement. This device converts an RF input signal to a corresponding DC output voltage that is proportional to the logarithm of the input signal's amplitude, making it ideal for applications requiring power monitoring or signal leveling.

DNA solutions, Nashik has various types of Amplifier IC. Check out our complete collection of Amplifier IC.

• Wide Frequency Range: Operates from 1 MHz to 10 GHz

• Dynamic Range: Provides a typical dynamic range of 55 dB for input power measurement

• Logarithmic Conformance: Accurate logarithmic response with a typical error of ±0.4 dB

• Low Power Consumption: Consumes only 22 mW at 3 V supply

• High Speed: Response time of 20 ns, suitable for fast signal processing applications

• Single-Supply Operation: Operates on a supply voltage of 2.7 V to 5.5 V

Specifications of AD8317ACPZ-R7 Logarithmic Amplifier

• Supply Voltage: 2.7 V to 5.5 V

• Supply Current: 6.5 mA typical

• Input Power Range: -60 dBm to 0 dBm

• Minimum Frequency: 1 MHz

• Maximum Frequency: 10 GHz

• Logarithmic Slope: 22 mV/dB (nominal)

• Logarithmic Intercept: -58 dBm (typical)

• Output Voltage Range: 0.1 V to 1.4 V

Applications of AD8317ACPZ-R7 Logarithmic Amplifier

• Power Measurement

• Signal Monitoring

• Automatic Gain Control (AGC)

• VSWR Measurements

Package Includes
