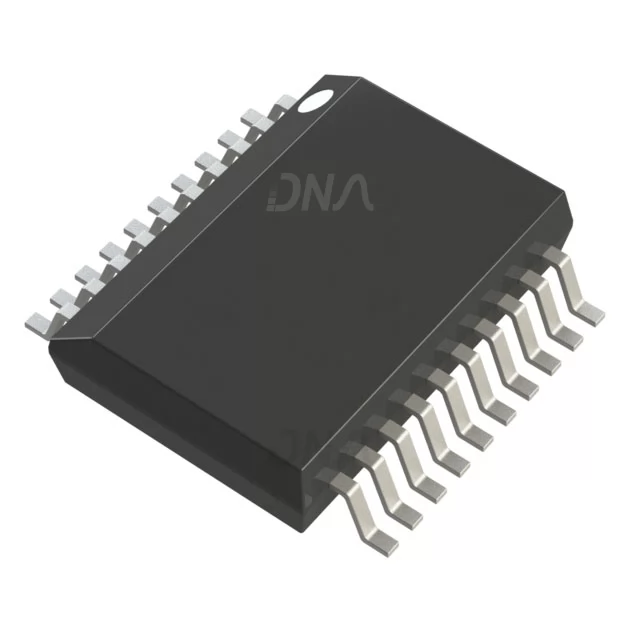

ADE7753ARSZ Single-Phase Multifunction Metering IC with di/dt Sensor Interface

ADE7753ARSZ Single-Phase Multifunction Metering IC with di/dt Sensor Interface

The ADE7753ARSZ is a precision energy metering integrated circuit suitable for use in single-phase, two-wire distribution systems. It is designed to measure active power (real power), apparent power, and reactive power, making it ideal for a variety of applications including residential, commercial, and industrial energy meters. The IC can interface directly with current transformers (CT) and resistive shunts to sense current and with resistive dividers or voltage transformers to sense voltage. The ADE7753 includes a serial interface that allows for communication with a microcontroller.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• High Accuracy

• Measurement Capabilities

• Wide Input Range

• Low Power Consumption

• SPI Interface

• Direct Drive for LCD

• On-chip Temperature Sensor

• Tamper Detection

• High Immunity to Interference

• Low-Cost

Applications of ADE7753ARSZ Single-Phase Multifunction Metering IC with di/dt Sensor Interface

• Energy Meters: Residential, commercial, and industrial single-phase energy meters.

• Power Monitoring: Systems requiring precise measurement of electrical power consumption.

• Smart Appliances: Devices that need to monitor and report power usage.

• Instrumentation: Equipment requiring accurate electrical measurements.

Related links

ADE7753ARSZ SMD IC

Package Includes

1 x ADE7753ARSZ Single-Phase Multifunction Metering IC with di/dt Sensor Interface
