ADE9000 Power Quality Monitoring SMD IC

ADE9000 Power Quality Monitoring SMD IC

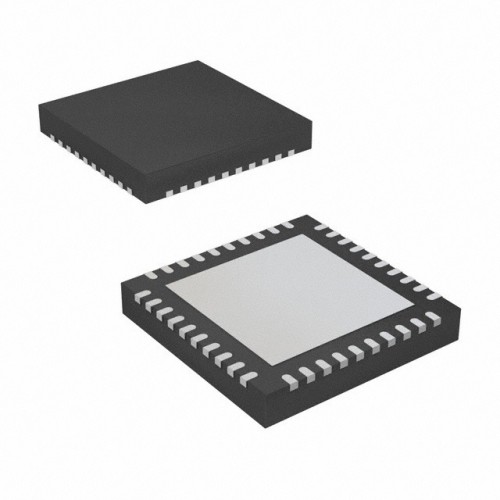

The ADE90001 is a highly accurate, fully integrated,  multiphase energy and power quality monitoring device. Superior analog performance and a digital signal processing (DSP) core enable accurate energy monitoring over a wide dynamic range. An integrated high end reference ensures low drift over temperature with a combined drift of less than ±25 ppm/°C maximum for the entire channel including a programmable gain amplifier (PGA) and an analog-to-digital converter (ADC).The ADE9000 offers complete power monitoring capability by providing total as well as fundamental measurements on rms, active, reactive, and apparent powers and energies. Advanced features such as dip and swell monitoring, frequency, phase angle, voltage total harmonic distortion (VTHD), current total harmonic distortion (ITHD), and power factor measurements enable implementation of power quality measurements.

DNA solutions, Nashik has various types of SMD IC's. Check out our complete collection of SMD IC's.

• 7 high performance ADCs


• Power quality measurements


• Dip and swell monitors Line frequency—one per phase


• Zero crossing, zero-crossing timeout


• Phase angle measurements


• Supports CTs and Rogowski coil (di/dt) sensors


• Multiple range phase/gain compensation for CTs


• Digital integrator for Rogowski coils


Applications of ADE9000 SMD IC

• Energy and power monitoring


• Power quality monitoring


• Protective devices


• Machine health


• Smart power distribution units


• Poly phase energy meters


Package Includes

1 x ADE9000 SMD IC
