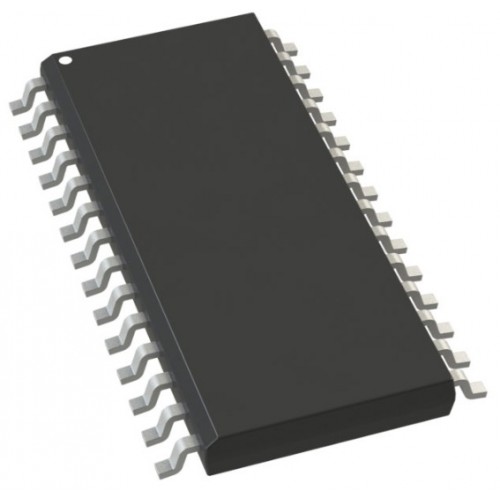

ADG5206BRUZ MUX 16:1 160OHM 28TSSOP IC

ADG5206BRUZ MUX 16:1 160OHM 28TSSOP IC

The ADG5206BRUZ is a high voltage, latch-up proof, 16-channel analog multiplexer developed by Analog Devices. It allows one of sixteen input channels to be selected and connected to a common output, controlled via a 4-bit binary address. An enable (EN) input is available to activate or deactivate the device; when EN is low, all channels are switched off.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Latch-Up Proof Design: Incorporates trench isolation to prevent latch-up, ensuring reliable operation even under severe overvoltage condition

• Low On-State Resistance: Typically 155 Ω, facilitating efficient signal transmission

• High ESD Rating: Human Body Model (HBM) ESD rating of 8 kV on all external pins, enhancing robustness

• Wide Supply Voltage Range: Operates with dual supplies from ±9 V to ±22 V or single supplies from 9 V to 40 V, accommodating various application requirements

Specifications of ADG5206BRUZ MUX 16:1 160OHM 28TSSOP IC

• Number of Channels: 16:1 multiplexer configuration

• On-State Resistance (Max): 160 Ω

• Switching Times (Max): Turn-on time of 230 ns and turn-off time of 185 ns

• Bandwidth (-3 dB): 65 MHz, suitable for high-frequency signal applications

• Package: 28-lead TSSOP

• Operating Temperature Range: -40°C to +125°C

Applications of ADG5206BRUZ MUX 16:1 160OHM 28TSSOP IC

• Automatic Test Equipment

• Data Acquisition Systems

• Instrumentation

• Avionics

• Battery Monitoring

Package Includes

      1 x ADG5206BRUZ MUX 16:1 160OHM 28TSSOP IC
