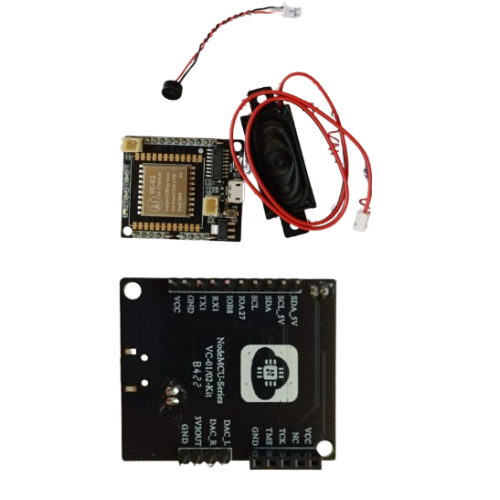

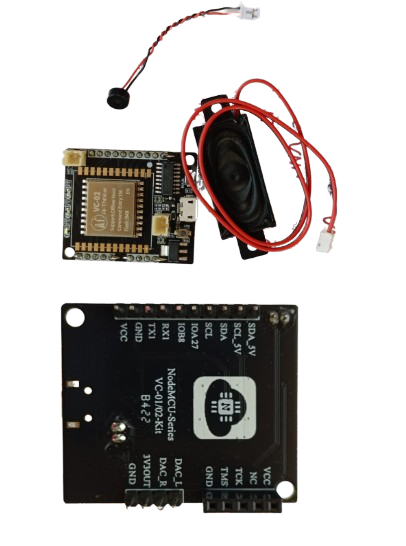

AI-Thinker VC-02 Kit

AI-Thinker VC-02 Kit

The VC-02-Kit is a development board designed for the VC-02 module, and it is a shared the same board with the VC-01-Kit. The development board integrates the CH340C serial port to a USB chip, providing a basic debugging interface and USB upgrade interface, designing wake-up light and cold and cooling lamp, providing status indication and control instructions, and easy to debug the simple control function. The offline recognition algorithm and chip architecture are deeply integrated to provide customers with ultra-low-cost offline speech recognition solutions. It can be widely and quickly applied to smart homes, all kinds of smart small household appliances, 86 boxes, toys, lamps, and other products that need voice control.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

• All GPIOs can be configured as external interrupt input and wake-up source

• One full-duplex UART with the maximum rate of 3Mbps

• Support I2C，DAC，PWM and multiple interfaces

• Built-in 242KB high-speed SRAM

• Built-in 2MB FLASH

• Support dual-channel DAC output

• 32bit RISC core, running at 240MHz

Specifications of AI-Thinker VC-02 Kit

• Item Type: AI and Display Modules

• Model: Ai-Thinker VC-02-Kit

• Supply Voltage (V): 5

• Current (mA): 500

Package Includes

      1 x AI-Thinker VC-02 Kit
