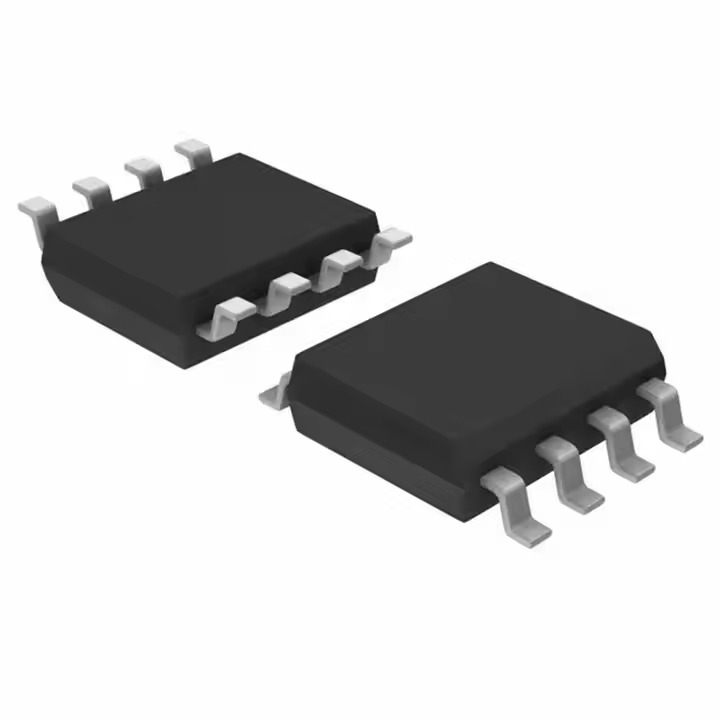

AIP7660EO SMD IC

AIP7660EO SMD IC

The Intersil ICL7660 and ICL7660A are monolithic CMOS power supply circuits which offer unique performance advantages over previously available devices. The ICL7660 performs supply voltage conversions from positive to negative for an input range of +1.5V to +10.0V resulting in complementary output voltages of -1.5V to -10.0V and the ICL7660A does the same conversions with an input range of +1.5V to +12.0V resulting in complementary output voltages of -1.5V to -12.0V. Only 2 noncritical external capacitors are needed for the charge pump and charge reservoir functions. The ICL7660 and ICL7660A can also be connected to function as voltage doublers and will generate output voltages up to +18.6V with a +10V input.

DNA solutions, Nashik has various types of SMD IC's. Check out our complete collection of SMD IC's.

• Simple Conversion of +5V Logic Supply to 5V Supplies


• Simple Voltage Multiplication (VOUT = (-) n VIN)


• Typical Open Circuit Voltage Conversion Efficiency 99.9%


• Typical Power Efficiency 98%


• ICL7660A 100% Tested at 3V


• Easy to Use - Requires Only 2 External Non-Critical Passive Components


• No External Diode Over Full Temp. and Voltage Range


•  P b-Free Plus Anneal Available (RoHS Compliant)


Applications of AIP7660EO SMD IC

• On Board Negative Supply for Dynamic RAMs


• Localized Processor (8080 Type) Negative Supplies


• Inexpensive Negative Supplies


• Data Acquisition Systems


Package Includes

1 x AIP7660EO SMD IC
