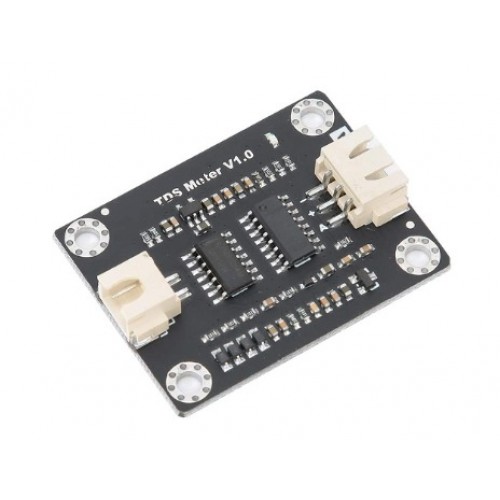

Analog TDS Sensor Module Normal Quality

Analog TDS Sensor Module Normal Quality

The commonly used TDS testing equipment is a TDS pen. Although it is inexpensive and easy to use, it cannot transmit data to the control system, do long-term online monitoring, and analyze the water quality. Using a special instrument, although the data can be transmitted, the accuracy is high, but the price is very expensive. To this end, we have specially introduced this Arduino-compatible TDS sensor, which can be used to measure the TDS value of water after connecting to the Arduino controller.

DNA solutions, Nashik has various types of Sensor Modules. Check out our complete collection of Sensor Modules.

• Wide voltage operation: 3.3~5.5V

• 0~2.3V analog signal output, compatible with 5V, 3.3V two control systems

• The excitation source is an AC signal, effectively preventing probe polarization

• Waterproof probe for long-term immersion in water

• Arduino compatible, easy to connect, plug and play, no soldering required

Specifications of Analog TDS Sensor Module Normal Quality

• Model Type: TDS Sensor

• Operating Voltage (VDC): 3.3 to 5.5

• Operating Current (A): 0.003

• Output Voltage(V): 0 to 2.3

• Measurement range: 0~1000ppm (TDS)

• Measurement Accuracy: ±10% F.S (TDS )

Package Includes

      1 x Analog TDS Sensor Module Normal Quality
