AS7341 EVKREFLECT Optical Sensor Development Tools

AS7341 EVKREFLECT Optical Sensor Development Tools

The AS7341 EVKREFLECT evaluation kit provides a comprehensive platform to evaluate the performance of the AS7341 spectral sensor in reflection mode. It includes the sensor hardware with a pre-assembled LED and a specialized 0°/45° optical front adapter, ensuring optimal measurement geometry for reflective surfaces. The kit also comes with a USB interface for seamless connection to a Windows PC, enabling users to interact with the sensor through the AS7341 Software GUI.

DNA solutions, Nashik has various types of Development Board's. Check out our complete collection of Development Board's.

• 11-Channel Spectral Sensing: The AS7341 sensor captures data across 11 discrete channels, covering a wide spectral range for detailed analysis

• Integrated LED Illumination: A pre-assembled LED is included to provide consistent lighting conditions during measurements

• 0°/45° Measurement Geometry: The specialized optical front adapter ensures accurate reflection measurements by positioning the sensor and LED at optimal angles

• User-Friendly Software Interface: The accompanying AS7341 Software GUI allows for real-time data visualization, configuration adjustments, and execution of various measurement tasks

Specifications of AS7341 EVKREFLECT Optical Sensor Development Tools

• Sensor: AS7341 11-channel spectral sensor

• Interface: I²C communication via USB-FTDI adapter

• Power Supply: 1.8 V provided by an onboard Low Dropout (LDO) regulator

• LED Current Control: Adjustable LED current settings to accommodate different reflective properties of surfaces

• Operating System Compatibility: Windows PC platforms

Applications of AS7341 EVKREFLECT Optical Sensor Development Tools

• Color Matching and Quality Control

• Material Identification

• Ambient Light Sensing

• Flicker Detection

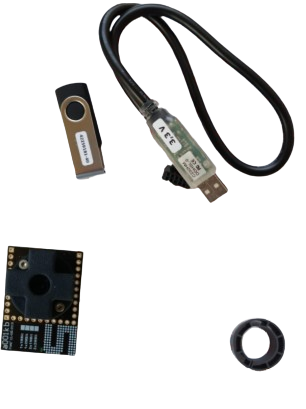

Package Includes

      1 x AS7341 EVKREFLECT Optical Sensor Development Tools
