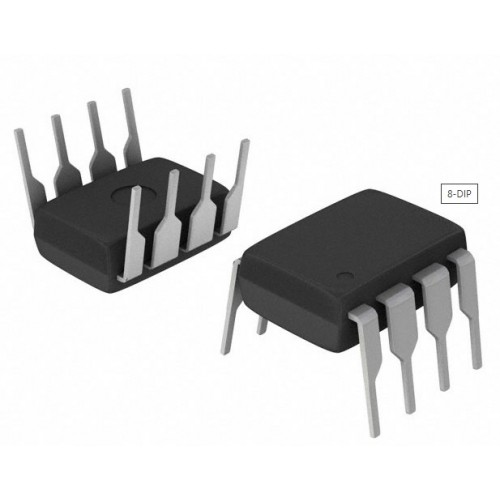

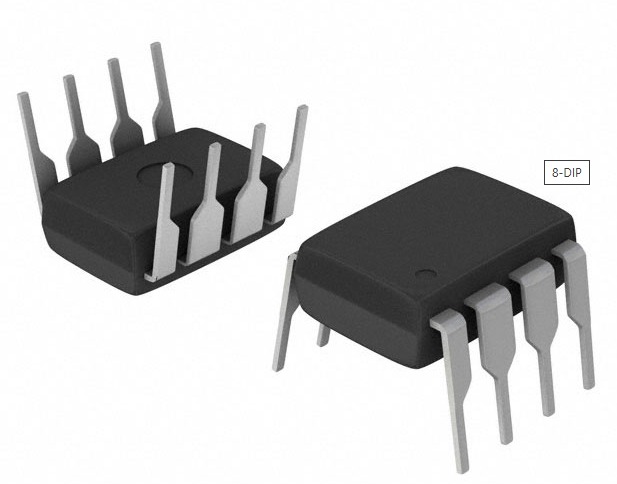

AT24C04 4K bit Serial I2C Bus EEPROM IC DIP-8

AT24C04 4K bit Serial I2C Bus EEPROM IC DIP-8

The AT24C04 is a 4-kilobit EEPROM organized as 512 x 8 bits (512 bytes). It communicates using the I²C (Inter-Integrated Circuit) protocol and operates at low power. The IC is available in a Dual In-line Package (DIP), making it ideal for breadboarding and through-hole applications. The AT24C04 provides non-volatile data retention, meaning stored data persists even when the power supply is turned off.

DNA solutions, Nashik has various types of IC 's. Check out our complete collection of IC's.

• Non-volatile Memory: Retains data without power

• I²C Protocol Support: Two-wire serial interface simplifies communication

• Write Protection: Hardware-based write protection via the WP

• Low Power Consumption: Ideal for battery-operated devices

Specifications of AT24C04 4K bit Serial I2C Bus EEPROM IC DIP-8T24C04 DIP IC

• Memory Size: 4 Kb (512 bytes)

• Organization: 512 x 8 bits

• Voltage Range: 1.7V to 5.5V

• Package: 8-pin DIP, SOIC, TSSOP, or other variants

• Operating Temperature: Industrial: -40°C to +85°C & Extended: -40°C to +125°C

Applications of AT24C04 4K bit Serial I2C Bus EEPROM IC DIP-8

• Consumer Electronics

• Industrial Automation

• Computers and Peripherals

• Medical Devices

• Communication Systems

Package Includes

      1 x AT24C04 4K bit Serial I2C Bus EEPROM IC DIP-8T24C04 DIP IC
