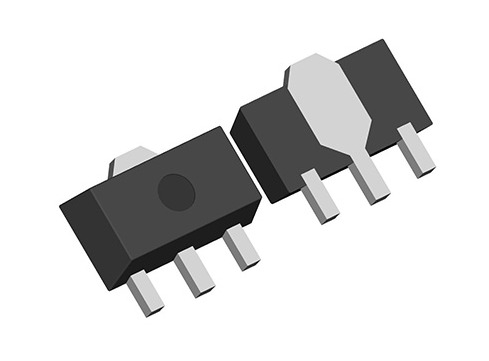

B772PNP SMD Transistor

B772PNP SMD Transistor

The B772PNP is a PNP SMD (Surface Mount Device) transistor primarily used for general-purpose amplification and switching applications. It is designed with high current handling capability and low saturation voltage, making it suitable for various electronic circuits requiring efficient switching and amplification.

DNA solutions, Nashik has various types of Transistor. Check out our complete collection of  Transistor.

• Transistor Type: PNP

• Surface Mount Package: Compact design suitable for SMD applications

• High Current Capability: Provides reliable performance under high current loads

• Low Saturation Voltage: Reduces power loss during operation, enhancing energy efficiency

• Thermal Stability: Performs well in varying temperature ranges, ensuring reliability

• RoHS Compliance: Meets environmental standards for hazardous substances

Specifications of B772PNP SMD Transistor

• Package: Typically SOT-89, SOT-223, or similar SMD package.

• Lead Configuration: Pin 1- Emitter, Pin 2- Collector, Pin 3- Base

• Operating Junction Temperature (Tj): -55°C to 150°C

• Transition Frequency (fT): 100 MHz (typical)

• Power Dissipation (Pd): Typically around 1W

• DC Current Gain (hFE): 100–400

• Collector Current (Ic): -3A

Applications of B772PNP SMD Transistor

• Audio Amplifiers

• Switching Circuits

• Power Regulation

• LED Drivers

• Battery-Operated Devices

Package Includes

      1 x B772PNP SMD Transistor
