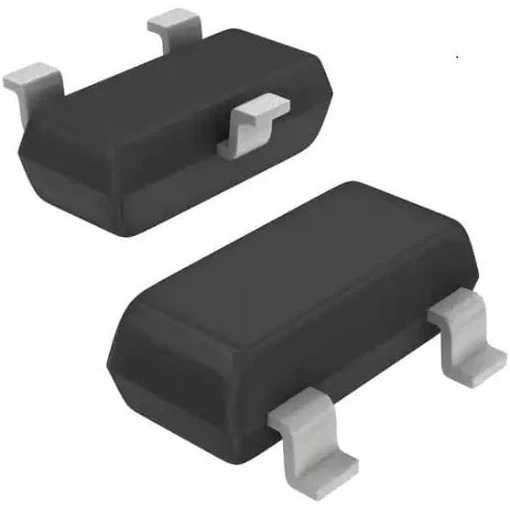

BC547 NPN bipolar junction SMD TRANSISTOR

BC547 NPN bipolar junction SMD TRANSISTOR

The BC547 is a popular NPN bipolar junction transistor (BJT) commonly used in general-purpose switching and amplification applications. While the original BC547 comes in a TO-92 through-hole package, its SMD version is often available in SOT-23 or similar surface-mount packages for compact applications on printed circuit boards (PCBs).The BC547 SMD is an NPN transistor used for switching and low-power amplification. It is designed for surface-mount technology (SMT), allowing integration in compact circuits where space is limited. Suitable for applications that require moderate current handling and low power dissipation. Widely used in signal amplification, switching circuits, and general-purpose electronic projects.

DNA solutions, Nashik has various types of Transistor's. Check out our complete collection of  Transistor's.

• NPN Transistor: In its default mode, the current flows from the collector to the emitter when a sufficient current is applied to the base.


• Low Power Consumption: Efficient for circuits that require minimal power dissipation.


• Compact SMD Package: Typically available in SOT-23, making it ideal for space-constrained applications.


• Low Noise: Suitable for low-power audio amplification and other sensitive signal applications.


• High Switching Speed: Ideal for fast switching circuits in low-current applications.

Specifications of BC547 NPN bipolar junction SMD TRANSISTOR

• Transistor Type: NPN


• Package: SOT-23 (SMD version)


• Collector-Emitter Voltage (Vce): 45V maximum


• Collector-Base Voltage (Vcb): 50V maximum


• Emitter-Base Voltage (Veb): 6V maximum


• Collector Current (Ic): 100 mA maximum


Package Includes

• 1 x BC547 NPN bipolar junction SMD TRANSISTOR
