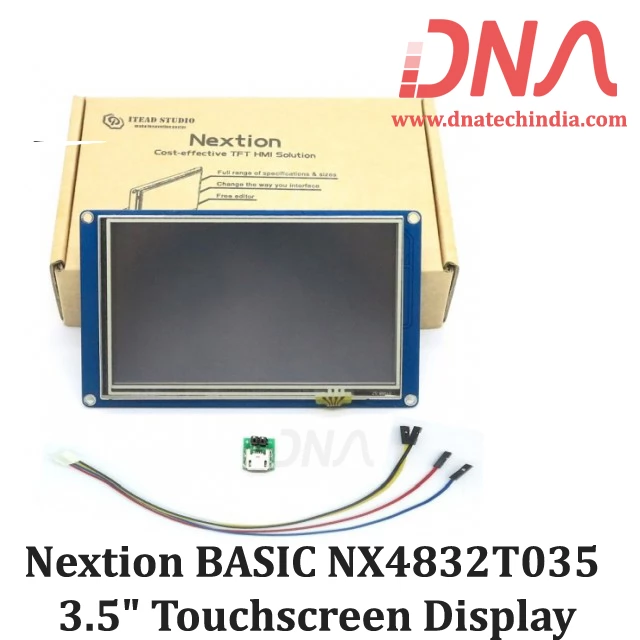

Nextion NX4832T035 basic 3.5" TFT Touch Display Module

Nextion 3.5" Basic Resistive Touch TFT Display

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

It's easy to adapt Nextion family HMI to existing projects. Users just need to provide it a UART. 3.5" Basic Nextion NX4832T035 HMI TFT Intelligent Display Module is a powerful 3.5'' HMI, which is member of Nextion family. Features include: a 3.5" TFT 480x320 resistive touch screen display, 16M Flash, 3.5KByte RAM, 65k colors.

DNA Technology is official distributor for Nextion Display in India. Check out various Nextion displays that we have in stock.

Features of Nextion NX4832T035 Basic 3.5 inch display

• 480 x 320 Resolution

• RGB 65K true to life colours

• TFT screen with integrated resistive touch panel

• 4 pin TTL serial interface

• 16M Flash memory for User Application Code and Data

• On board micro-SD card slot for firmware upgrade

• Visual Area: 73.44mm(L)×48.96mm(W)

• Adjustable Brightness: 0~180 nit, the interval of adjustment is 1%

• 5 Volt 500mA DC recommended power supply

• 5 Volt 145mA power consumption

• Certificates: CE/EMC, RoHS

Related Document

• Nextion NX4832T023-Generic 3.5" TFT Intelligent LCD Touch Display Datasheet

• Nextion ROHS certificate

• CE-EMC Test report for Nextion Displays

• CE-EMC Certificate of compliance
