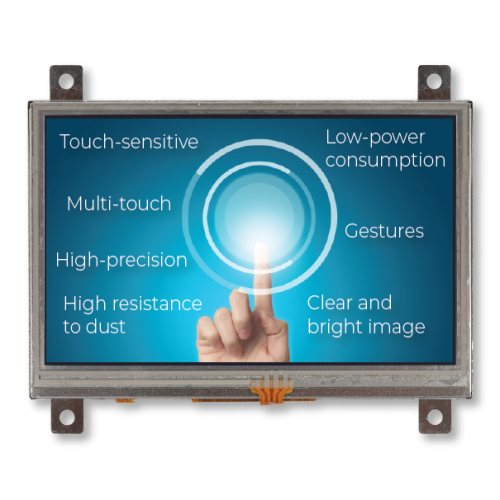

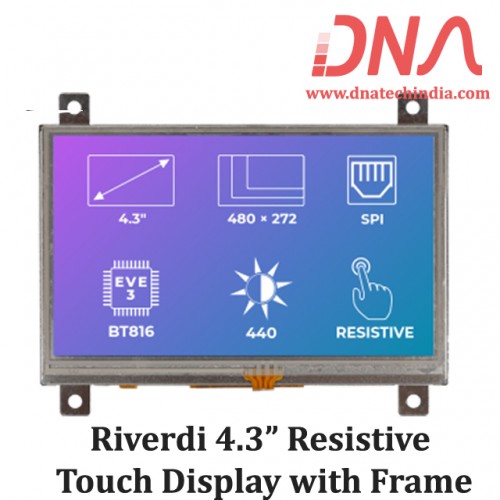

RiTFT-43-RES-FR 4.3 Inch Resistive Touch Display with Frame Mounting

Riverdi EVE Touch Screen Display with 4.3” Resistive Touch and easy frame mounting

RiTFT-43-RES-FR is a 4.3″ TFT display with a resistive touchscreen based on Bridgetek BT81x controllers consists of a metal mounting frame, and a built-in LED inverter. The 480×272 resolution provides crisp and clear colors, while the screen is driven by the powerful BT816 graphics controller. Riverdi EVE Series RiTFT-43-RES-FR features the standard SPI/QSPI interface.

Riverdi Resistive Touchscreens are well-suited for more robust environments. Resistive Touchscreens have a high resistance to dust and other elements and they can be used even with gloved hands. Resistive touch screens also have low-power consumption and are suitable for battery powered devices.

We have Various sizes of Riverdi Display. Check out our complete collection of Riverdi Display.

Features for RiTFT-43-RES-FR Touch Display

• Model Number : RVT43ALBFWR00
• Weight : 76 grams

• Active area  : 95.04×53.86mm
• Dimensions  : 106.30×68.00×8.38mm
• Operating temp : '-20~70'(°C)

• Dot pitch : 0.066×0.198 (mm2)
• LCD type : TFT
• Input Voltage : 3.3 Volts
• Viewing direction : 12:00 o'clock
• Gray Scale Inversion Direct : 6:00 o'clock
• Backlight Type : 10 LEDs
• Pixel Arrangement : RGB Vertical Stripe
• Controller : BT816
• Resolution : 480×272
• Size : 4.3 inch
• Brightness : 440 (cd/m²)
• Touch Screen : Resisitve
• Interfaces : SPI/QSPI
• Driver IC : ILI6480BQ
