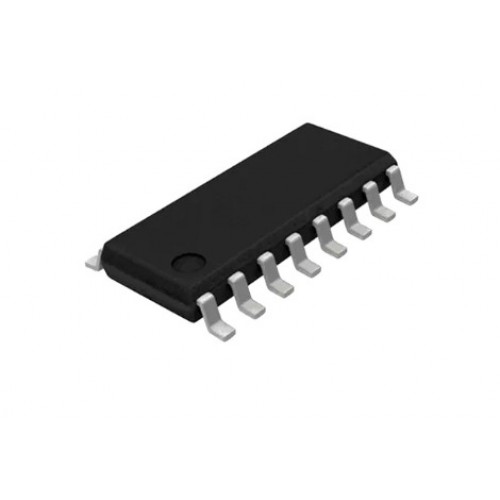

CD4051BM96 Single 8ch Analog CMOS Multiplexer/Demultiplexer IC

CD4051BM96 Single 8ch Analog CMOS Multiplexer/Demultiplexer IC

The CD4051BM96 is an analog multiplexer/demultiplexer IC designed to handle both analog and digital signals. It features low ON resistance and low OFF leakage, making it ideal for applications requiring high signal integrity. It functions as an 8-channel single-pole, single-throw (SPST) switch controlled by a digital control signal.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• 8-Channel Analog Multiplexer/Demultiplexer: Provides 8 selectable channels for signal routing

• Low ON Resistance: Ensures minimal signal degradation and high fidelity

• Wide Power Supply Range: Operates with supply voltages ranging from 3V to 18V

• CMOS Technology: Low power consumption with high noise immunity

• Wide Analog Signal Range: Capable of routing signals within the power supply range

Specifications of CD4051BM96 Single 8ch Analog CMOS Multiplexer/Demultiplexer IC

• Power Supply Voltage (VDD): 3V to 18V

• Analog Signal Voltage Range: 0V to VDD

• ON Resistance: Typically 125 ohms at VDD = 10V and 25°C

• Propagation Delay: Low delay for high-speed applications

• Operating Temperature Range: -55°C to +125°C

Applications of CD4051BM96 Single 8ch Analog CMOS Multiplexer/Demultiplexer IC

• Analog Signal Routing

• Data Acquisition Systems

• Test Equipment

• Sensor Interface Circuits

• Digital-to-Analog Conversion

Package Includes

      1 x CD4051BM96 Single 8ch Analog CMOS Multiplexer/Demultiplexer IC
