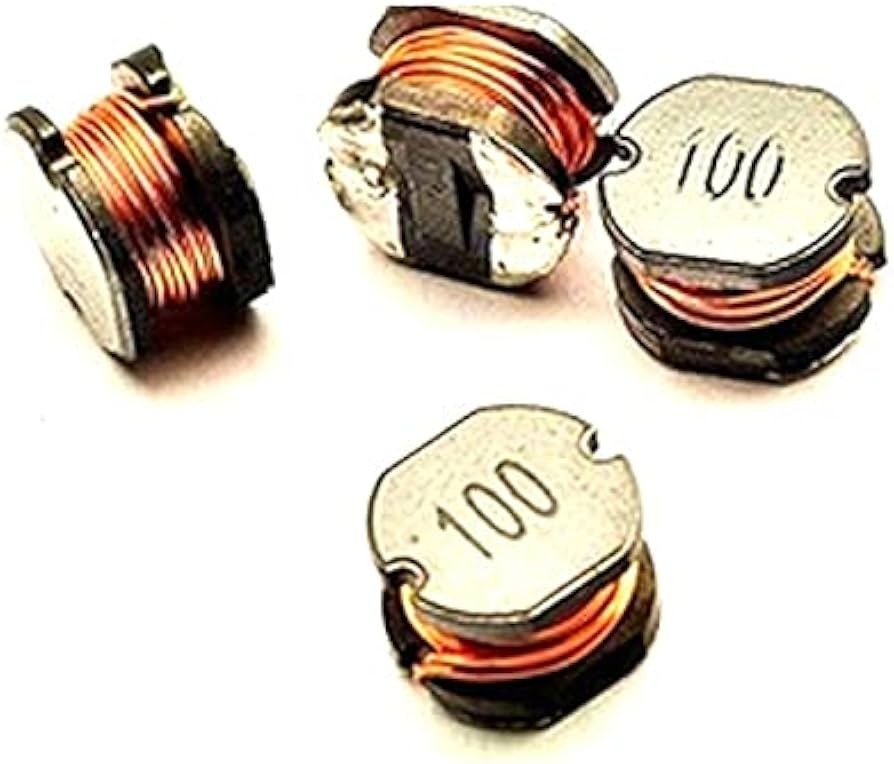

CD75 10UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS

CD75 10UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS

A CD75 10μH Surface Mount Power Inductor (10 micro H) is a 2-terminal passive device having a coil of wire wound wrapped around a core. A core may be magnetic metal or air to produce a high inductance in the wire. The terminals are pads on a surface mount component. When we apply a current through the inductor, a magnetic field is generated around it. The magnetic field generated by using a magnetic core will be much much stronger than others. The CD75 series inductors are wound with ferrite cores, providing high efficiency in energy storage. These inductors are compact, with high saturation current capability, making them ideal for compact electronic designs requiring stable inductance over a wide range of current levels.

DNA solutions, Nashik has various types of Inductor's. Check out our complete collection of Inductor's.

• Compact Size: Small footprint for efficient PCB space utilization.

• High Current Handling: Can handle significant DC currents without saturating.

• Low DC Resistance: Minimizes power loss in the circuit, improving overall efficiency.

• Stable Inductance: Maintains stable inductance over a wide range of current values.

• High Reliability: Designed for durability in power electronics and other demanding applications.

Specifications of CD75 10UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS

• Inductance: 10 µH ±20%

• DC Resistance (DCR): Approximately 0.02Ω (typical)

• Saturation Current: Typically rated up to 4A or higher (dependent on specific model)

• Core Material: Ferrite core for efficient magnetic properties

• Operating Temperature Range: -40°C to +125°C

• Mounting Type: Surface Mount Device (SMD) or Through-Hole, depending on model

Package Includes

• 1 x CD75 10UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS
