CD75 47UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS

CD75 47UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS

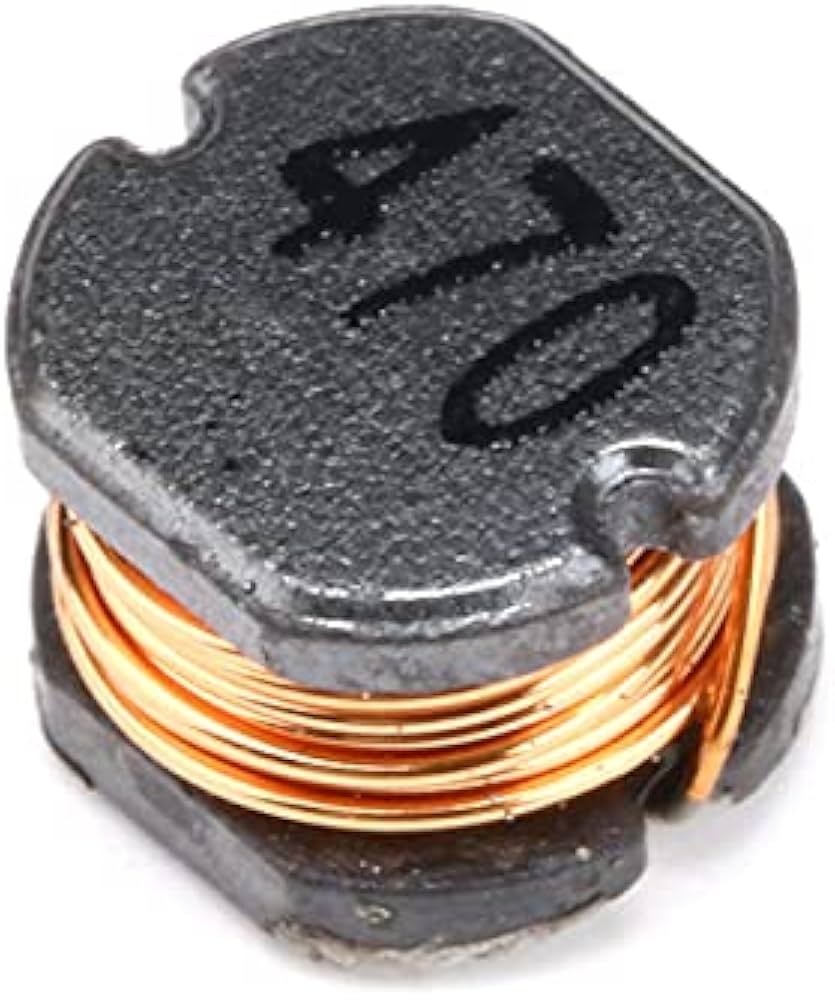

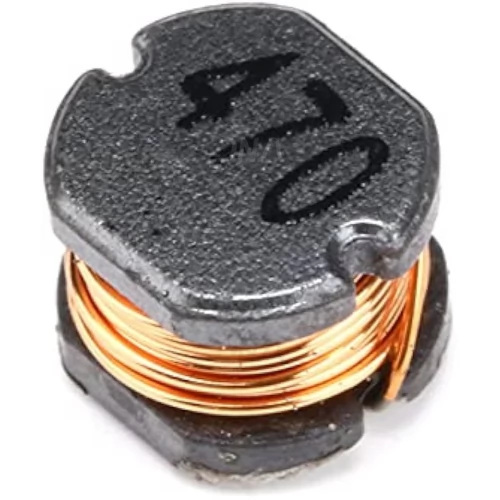

The CD75 47µH inductor is a surface-mount power inductor built around a ferrite core, which provides excellent magnetic stability and efficiency. It’s ideal for DC-DC converters and power supplies that require efficient energy storage and minimal electromagnetic interference (EMI). The CD75 series offers stable inductance values, even under high current loads, ensuring smooth current flow in electronic circuits. The CD75 47µH surface-mount power inductor is a reliable component designed for use in DC-DC converters, power management, and filtering applications.

DNA solutions, Nashik has various types of Inductor's. Check out our complete collection of Inductor's.

• Surface Mount Design: Compact SMD profile that’s easy to integrate into dense PCB layouts.

• High Current Capability: Designed to handle high DC currents with minimal saturation, essential for power applications.

• Low DC Resistance (DCR): Optimized to reduce power loss, improving overall efficiency.

• Consistent Performance: Maintains stable inductance across a wide range of frequencies and temperatures.

• High Reliability: Durable design ideal for demanding applications, such as DC-DC conversion and filtering.

Specifications of CD75 47UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS

• Inductance: 47 µH ±20%

• DC Resistance (DCR): Typically around 0.06Ω (may vary by manufacturer)

• Saturation Current: Typically rated up to 2A to 2.5A (depending on model and manufacturer specifications)

• Core Material: Ferrite, providing stable magnetic properties for high efficiency.

• Operating Temperature Range: -40°C to +125°C, ensuring reliability in various environments.

• Mounting Type: Surface mount (SMD) for easy installation on PCBs.

Package Includes

• 1 x CD75 47UH SURFACE MOUNT POWER DC-DC CONVERTER INDUCTORS
