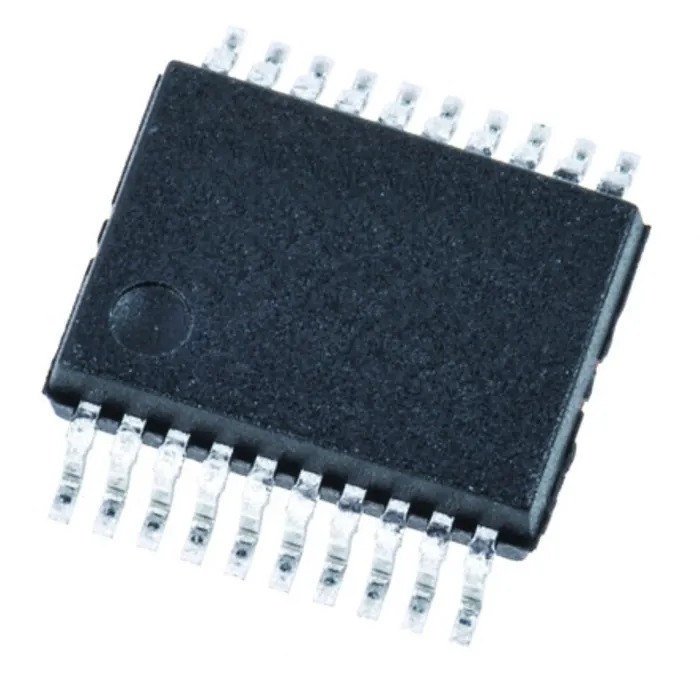

CH370 USB Communication Interface IC

CH370 USB communication interface IC

The CH370 is a versatile USB communication interface IC that supports both parallel and serial data transfers. It is designed to facilitate easy integration of USB connectivity into devices that traditionally use parallel or serial communication. The chip handles USB protocol processing and data transfer, simplifying the design process for engineers integrating USB into their systems.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

• USB 2.0 Full-Speed: Operates at USB 2.0 full-speed (12 Mbps), providing reliable data transfer between the USB host and the connected device.


• Support for Multiple Data Formats: Capable of interfacing with devices using both parallel and serial communication formats.


• Integrated USB Protocol Handling: Simplifies the integration of USB functionality by managing USB protocol and data transfer internally.


• 8-Bit Parallel Interface: Supports an 8-bit parallel data interface for communication with devices like printers and parallel ports.


• Configurable Timing and Control Signals: Offers flexibility in configuring data timing and control signals for compatibility with various parallel devices.


• UART Support: Includes support for a serial UART interface, allowing for communication with serial devices.


Specifications of CH370 USB communication interface IC

• USB Interface: Compliance: USB 2.0 full-speed compliant (12 Mbps).


• Serial Interface: UART Configuration: Supports various baud rates, data bits, parity, and stop bits configurations.


• Operating Temperature Range: Typically -40°C to +85°C, suitable for industrial and commercial applications.


• Package Type: Form Factor: Available in SOP or QFN SMD packages, designed for surface-mount technology (SMT) applications.


• Power Consumption: Optimized for Low Power: Efficient power usage, making it ideal for portable devices.


Package Includes

• 1 x CH370 USB communication interface IC
