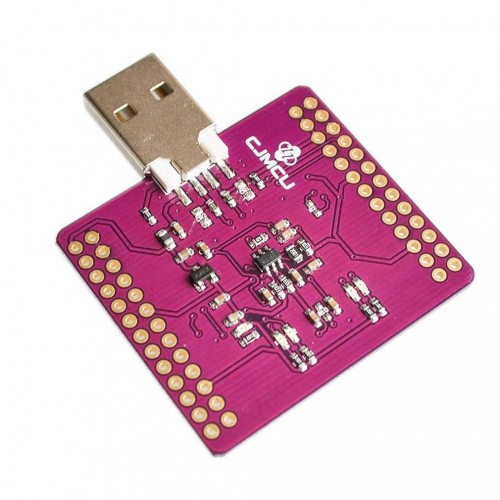

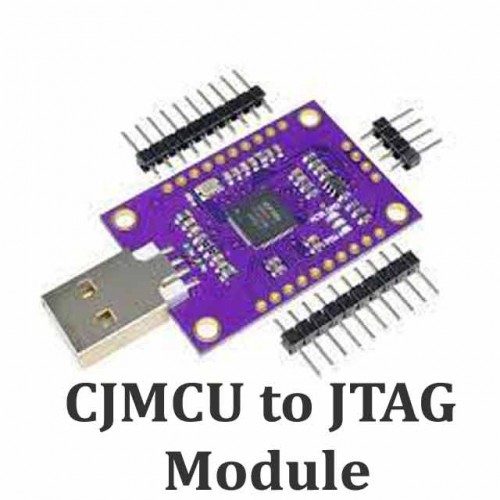

CJMCU FT232H USB to JTAG UART/FIFO SPI/I2C Module

CJMCU FT232H USB to JTAG UART/FIFO SPI/I2C Module

CJMCU-FT232H is a single channel USB 2.0 Hi-Speed (480Mb/s) to UART/FIFO IC.  It has the capability of being configured in a variety of industry standard serial or parallel interfaces.

We have Various sizes of Communication Modules. Check out our complete collection of Communication Modules.

Applications

• Single chip USB to UART (RS232, RS422 or RS485)

• USB to FIFO

• USB to FT1248

• USB to JTAG

• USB to SPI

• USB to I2C

• USB to Bit-Bang

• USB to Fast Serial Interface

• USB to CPU target interface

Features

• Single channel USB to serial / parallel ports with a variety of configurations.

• Entire USB protocol handled on the chip. No USB specific firmware programming required.

• USB 2.0 Hi-Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible.

• Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI (MASTER) or bit-bang) design.

• UART transfer data rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter).

• USB to asynchronous 245 FIFO mode for transfer data rate up to 8 Mbyte/Sec.

• UB to synchronous 245 parallel FIFO mode for transfers upto 40 Mbytes/Sec

• Supports a proprietary half duplex FT1248 interface with a configurable width, bi-directional data bus (1, 2, 4 or 8 bits wide).

• CPU-style FIFO interface mode simplifies CPU interface design.

• Fast serial interface option.

• FTDI's royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.

• Adjustable receive buffer timeout.

Specification

• Hi-speed to UART/FIFO IC: 480Mb/s

• Full speed: 12Mbits/Second

• UART transfer data rata: 12Mbaud

• USB to asynchronous 245 FIFO mode for transfer data rate: 8 Mbyte/Sec

• USB to synchronous 245 parallel FIFO mode for transfers: 40 Mbytes/Sec

Package Includes

1x CJMCU FT232H USB to JTAG UART/FIFO SPI/I2C Module
