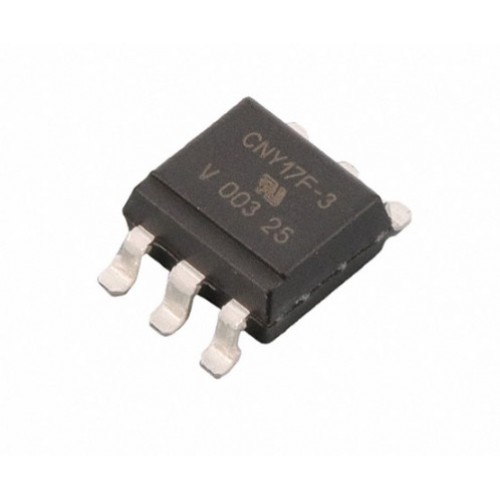

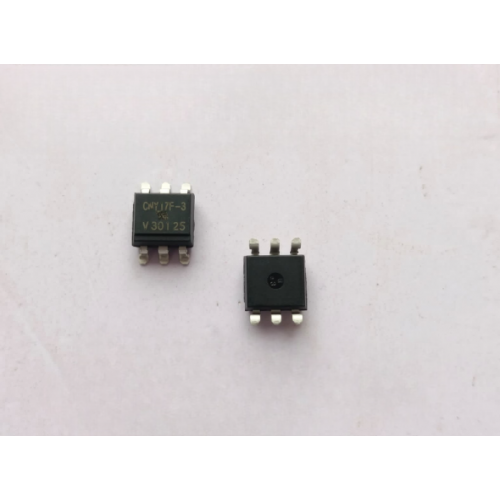

CNY17F-3X007T VISHAY MAKE Optoisolator Transistor

CNY17F-3X007T VISHAY MAKE Optoisolator Transistor

The CNY17F-3X007T is a compact, high-performance optoisolator that consists of a gallium arsenide infrared LED optically coupled to a silicon phototransistor. It is housed in a 4-pin DIP (Dual In-line Package) configuration. This device ensures safe signal transmission between circuits of different voltage levels, offering robust electrical isolation.

DNA solutions, Nashik has various types of Optoisolators. Check out our complete collection of Optoisolators.

• High Isolation Voltage: Provides electrical isolation up to 5 kV between input and output

• Compact Package: Housed in a 4-pin DIP package for easy integration into circuits

• High CTR (Current Transfer Ratio): Guaranteed CTR range ensures reliable performance

• Wide Operating Temperature Range: Suitable for applications in harsh environments

• UL Certified: Meets safety standards for industrial and consumer applications

Specifications of CNY17F-3X007T VISHAY MAKE Optoisolator Transistor

• 4-pin DIP plastic package

• Lead spacing: Standard DIP configuration

• Lead-free and RoHS compliant

• Operating Temperature Range: -55°C to +100°C

• Storage Temperature Range: -55°C to +125°C

• Input LED Forward Voltage: ~1.2 V at 20 mA (typical)

• Input LED Forward Current: Max. 50 mA

• Isolation Voltage: 5000 Vrms

Applications of CNY17F-3X007T VISHAY MAKE Optoisolator Transistor

• Industrial Automation

• Telecommunications

• Consumer Electronics

• Medical Equipment

• Power Electronics

• Microcontroller Interfacing

Package Includes

      1 x CNY17F-3X007T VISHAY MAKE Optoisolator Transistor
