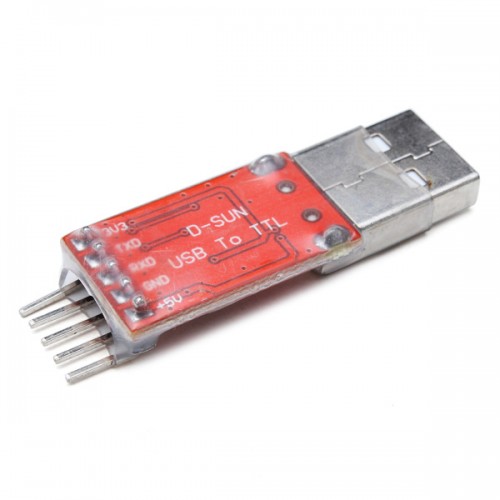

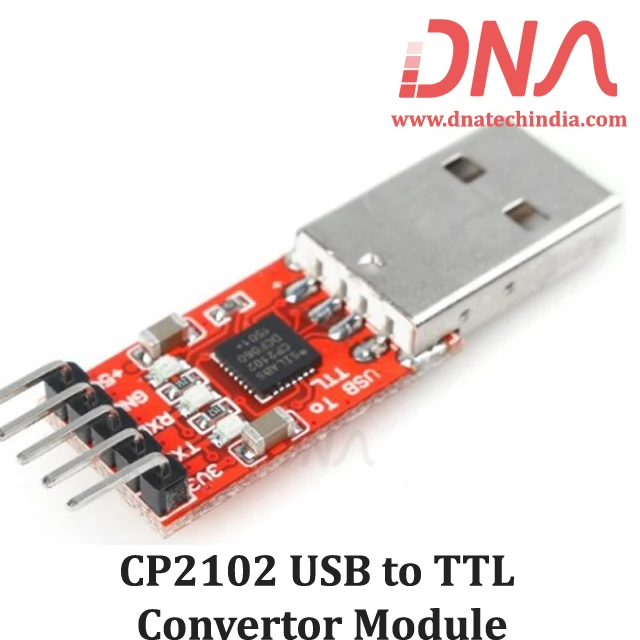

CP2102 USB to TTL Convertor Module

The CP2102 is a highly-integrated USB-to-UART Bridge Controller providing a simple solution for updating RS-232 designs to USB using a minimum of components and PCB space.

The CP2102 includes a USB 2.0 full-speed function controller, USB transceiver, oscillator, EEPROM, and asynchronous serial data bus (UART) with full modem control signals in a compact 5 x 5 mm MLP-28 package.

The CP2102 UART interface implements all RS-232 signals, including control and handshaking signals, so existing system firmware does not need to be modified. In many existing RS-232 designs, all that is required to update the design from RS-232 to USB is to replace the RS-232 level-translator with the CP2102.

We have Various sizes of Communication Modules. Check out our complete collection of Communication Modules.

Features of CP2102

• Included USB transceiver, without external circuit device

• Includes a clock circuit, no external circuitry

• Includes power-on reset circuit

• Chip 3.3V voltage regulator output voltage

• Supported data format is 8 data bits, 1 stop bit and parity bits

• 3.3V and 5V dual power output

• Weight : 4g
