DAC8551EVM Development Boards

DAC8551EVM Development Boards

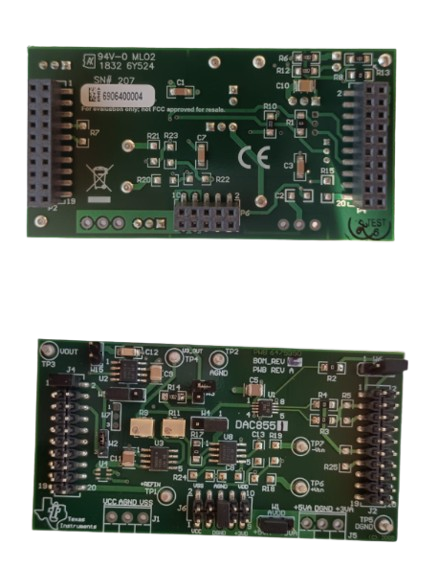

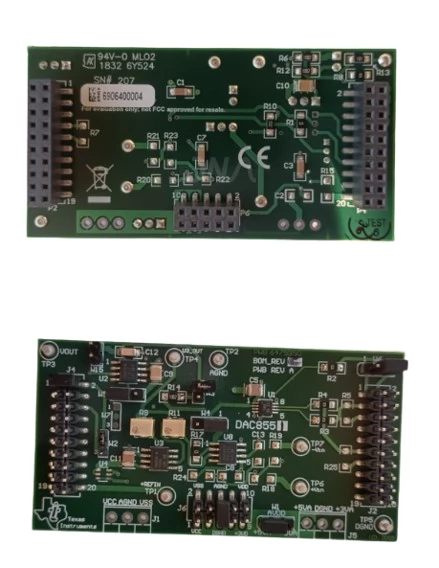

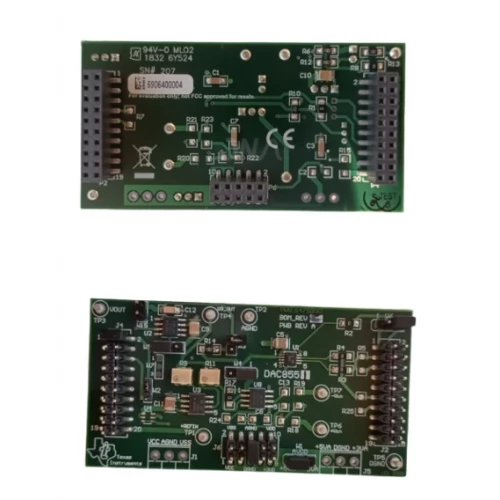

The DAC8551EVM is an evaluation module designed to facilitate the assessment of Texas Instruments' DAC8551, a high-resolution, single-channel, serial input digital-to-analog converter (DAC). This module provides a streamlined platform for users to evaluate the DAC's functionality and performance.

DNA solutions, Nashik has various types of Development Board's. Check out our complete collection of Development Board's.

• Serial Interface Header: Enables straightforward communication with host microprocessors or TI DSP-based systems

• Stackable Design: Allows stacking of two DAC8551EVM boards, provided each has a unique frame synchronization signal, effectively expanding to a dual-channel configuration

• Compatibility: Compatible with TI's 5-6KINTERFACE board, supporting integration with C3000 and C6000 DSP Starter Kits. Additionally, it can interface with MSP430-based platforms

Specifications of DAC8551EVM Development Boards

• DAC Resolution: 16-bit, offering ultra-low glitch voltage output

• Communication Protocol: Supports serial communication, facilitating easy integration with various digital systems

• Interface Connectors: Equipped with headers J2 and P2 (top and bottom pass-through connectors) for interface signals, enhancing flexibility in system integration

Package Includes
