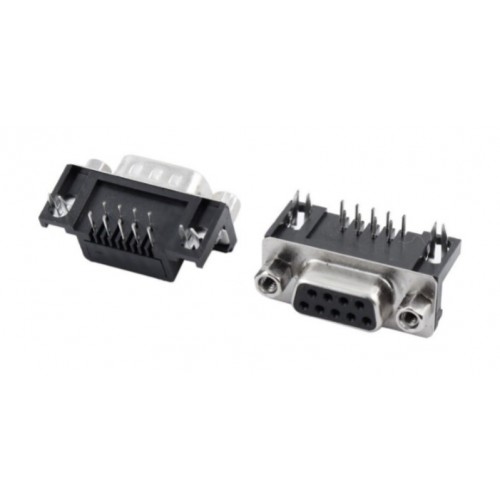

DB9 Female  Right Angle Connector – 9 Pin PCB Mount with Internal Thredding

DB9 Female  Right Angle Connector – 9 Pin PCB Mount with Internal Thredding

The DB9 Female Right Angle Connector is the most common type of electrical connector. DB9 connector is part of the D-sub miniature (D-sub) connector plug and socket family for computer and communication devices. DB-9 pins are arranged in rows of two, as one five-pin row above a four-pin row. The terminals of this connector are bent at a right angle. DB9 connectors are designed to work with the EIA/TIA 232 serial interface standard, which determined the function of all nine pins as a standard so that multiple companies could design them into their products. DB9 connectors were commonly used for serial peripheral devices like keyboards, mice, joysticks, etc. Also, they are used in DB9 cable assemblies for data connectivity. This product is known as 9 Pin DB9 Female Connector, Component, DB9 Connector, DB9 Female Connector, DB9 9 Pin Female Connector.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• Nickel-plated terminals

• Solder cup configuration for longevity

• Good quality

Specification of DB9 Female Right Angle Connector – 9 Pin PCB Mount with Internal Thredding

• Mounting Type: DB9 Female PCB Mount Right Angle

• Connector Type: DB-9

• Connector Gender: Female

• Operating Temperature Range: -55 to 125°C

• Material: Metal and plastic

• Voltage Rating: 250 VAC

• Current Rating: 5 A

• Insulation Resistance: 1000 MΩ

• Contact Resistance: 20 mΩ

• Length: 30 mm

• Width: 16 mm

• Height: 18 mm

• Weight: 6 gm

Applications of DB9 Female  Right Angle Connector – 9 Pin PCB Mount with Internal Thredding

• Computer video Output

• Game controller ports

• Communication Device

• Network ports

• Linear and rotary encoders in industries

Package Includes

• 1 x DB9 Female  Right Angle Connector – 9 Pin PCB Mount with Internal Thredding
