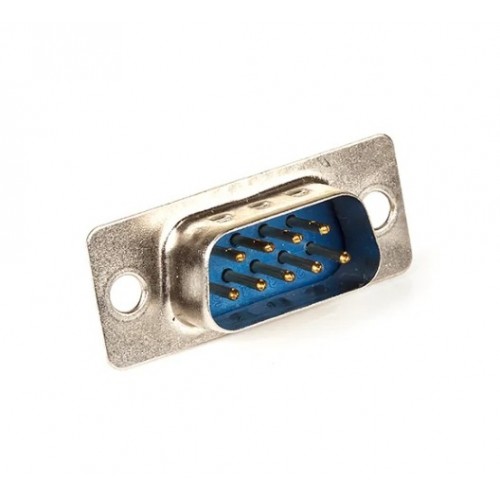

DB 9 MALE CONNECTOR

DB 9 MALE CONNECTOR

The DB9 Male Connector is a type of D-subminiature (D-sub) connector commonly used for serial communication. The "DB9" refers to the D-shaped shell and 9 pins, and the male version has protruding pins that fit into a corresponding female socket. It was widely used in early personal computers for RS-232 serial ports, and still sees use in industrial, networking, and embedded systems.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

• 9-pin configuration for data, signal ground, and control signals

• Compact and durable D-shaped housing for secure and polarized connection

• Nickel-plated or gold-plated pins for corrosion resistance and better conductivity

• Available in solder type, crimp type, or PCB mount

• Offers locking screws for secure mechanical connection

Specifications of DB 9 MALE CONNECTOR

• Parameter: Value

• Connector Type: D-sub (DB9) Male

• Number of Pins: 9

• Pin Configuration: Standard RS-232 (can vary)

• Mounting Type: Panel Mount / PCB Mount / Cable Mount

• Contact Material: Brass or Phosphor Bronze

• Contact Plating: Tin/Nickel/Gold

Applications of DB 9 MALE CONNECTOR

• computers, PLCs, and industrial machines

• Console ports for switches, routers

• Debugging and interfacing microcontrollers

• Oscilloscopes, signal generators

Package Includes

      1 x DB 9 MALE CONNECTOR
